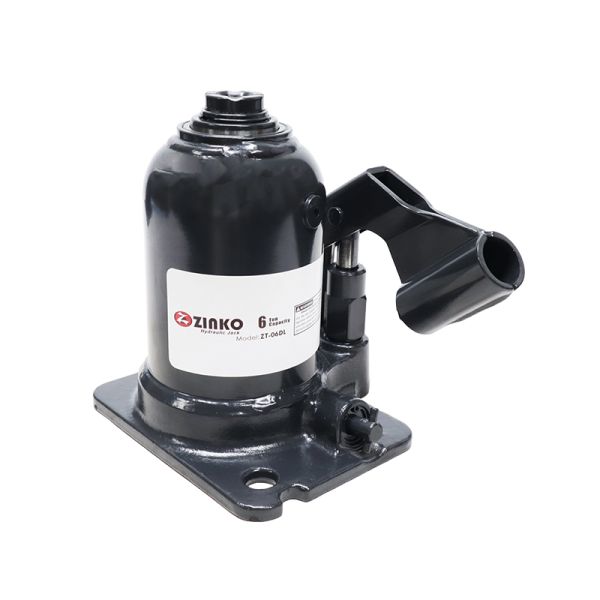

ZT-06DL, 6 Ton Telescoping Bottle Jack ( 2 Stage )
$306.60
In stock
SKU
83-06DL
Overview
The Zinko ZT-06DL is a 6-ton, two-stage telescoping hydraulic bottle jack designed for high-stroke lifting in restricted mechanical spaces. It provides a continuous 10.78" total stroke, moving seamlessly from a 6.45" low pickup height to a 17.23" maximum elevation. Constructed with electric-welded seams to eliminate traditional fluid leak points, this 14 lb jack features an adjustable top heat-treated extension screw and supports multi-position vertical or lateral horizontal force deployment.
Special Features:
- Safety valve designed to protect the hydraulic system from overload damage
- Welded steel construction for added strength while preventing oil leakage
- Adaptable to a variety of environments between -40°F ~ 140°F
- Models with additional screw extension offer increased use of the stroke
- Can be used in both vertical and horizontal positions with lifting capacity
Country of Origin: Taiwan
| Capacity (Tons) | 6 |
|---|---|
| Minimum Height (in) | 6.45 |
| Maximum Heights (in) | 17.23 |
| Ram Lift (in) | 10.78 |
| Screw Extension (in) | 2.70 |
| Base Area (in) | 6.31 X 5.55 |
| Weight (lbs) | 14.000000 |
| Pump Direction | Vertical |
