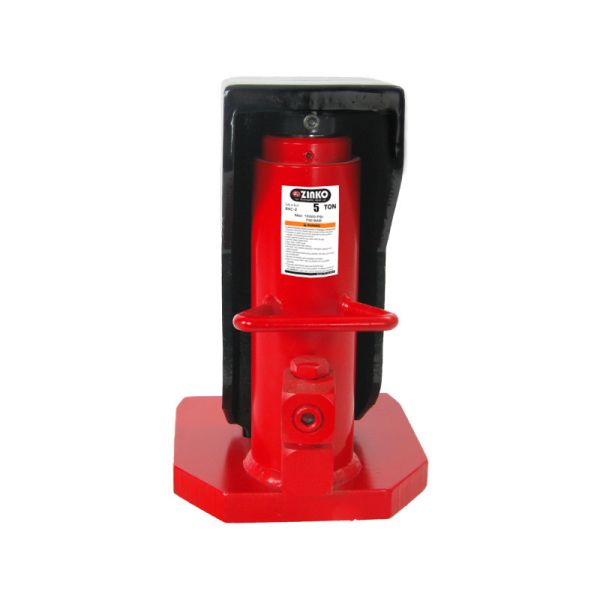

RHC-5, 5 TON RAM TOE
The RHC-5 hydraulic toe cylinder is engineered for lifting heavy machinery, structural elements, and industrial equipment in confined environments. Built with a solid steel body for dependable durability, the unit delivers a full 5-ton capacity across a 4.92" stroke using either its top saddle or low-profile toe. A starting pickup height of just 0.87" provides practical access under tight ground clearances where conventional lifting points are inaccessible, while a stable 7.12" x 7.12" base keeps loads secure during operation. Designed for remote actuation via standard external hydraulic hand or air pumps, it allows technicians to manage difficult rigging, alignment, and equipment positioning tasks safely away from the load.
Special Features:
- These toe cylinders are designed to lift loads with a very low clearance. The toe area can pick up the load from as low as 0.88 inches, which is the lowest pick up point in the industry.
- Easily connecting the port to any hand pump or air pump. These toe cylinders will give the operator full control of the lift from a distance whenever close quarters operation is not accessible. Coupler connection port can be operated at any direction.
- 5 and 10 ton models come with steel cylinder.
- 10 and 25 ton models come with aluminum cylinder lighter weight for mobility.
Country of Origin: Taiwan
| Capacity (Tons) | 5 |
|---|---|
| Oil Capacity (in³) | 11.20 |
| Minimum Height - Toe (in) | 0.87 |
| Minimum Height - Head (in) | 11.75 |
| Maximum Height - Toe (in) | 5.79 |
| Maximum Height - Head (in) | 16.67 |
| Ram Lift (in) | 4.92 |
| Toe Area (in) | 2.25 x 2.88 |
| Base Area (in) | 7.12 x 7.12 |
| Weight (lbs) | 42.000000 |
