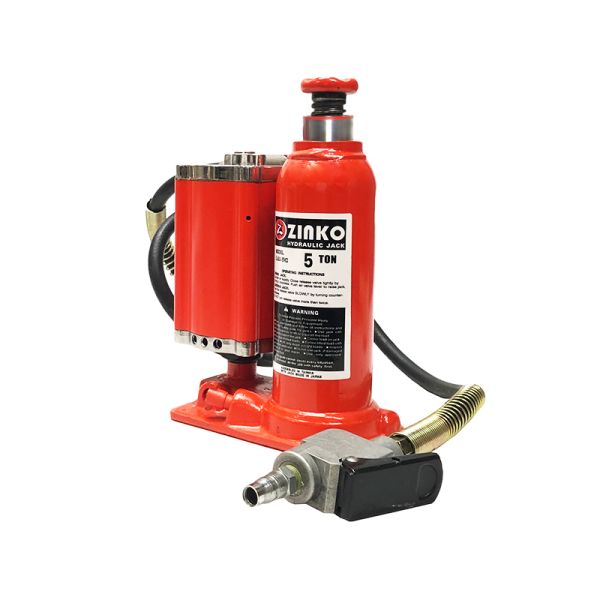

ZABJ-5M, 5 Ton Air Hydraulic Bottle Jack
$345.71
In stock
SKU
60-05M
Overview
Connect this professional-grade 5-ton air hydraulic bottle jack directly to standard 40–140 PSI shop air lines to deliver 10,000 lbs of lifting power at the simple push of a button. Manufactured in Japan, it converts your compressor's air supply into high-pressure hydraulic force through an ultra-rugged welded steel cylinder and a stable ductile iron base built to prevent leaks. Outfitted with an internal safety overload valve, a 360° swivel hose connection, and spring coil hose shields, it offers a highly reliable, compact, and hands-free lifting solution for automotive garages and machinery alignment.
Special Features:
- Fast and efficient air pump saves lifting time; built-in safety valve to prevent overload
- Welded steel construction reduces metal fatigue allowing for a longer life
- Heat treated extension screw and release valve adds extra strength and life span
- Extremely strong and well designed swivel head bolt with 360° movement to prevent hose binding
- Spring coil protectors on both ends to prevent punctures
- Rust preventive coating on ram and extension screw
- Convenient push button flap type air operation valve
- Forged steel base increases resistance to high pressure and increases durability
- Welded carrying handle for easy transport
Country of Origin: Japan
| Capacity (Tons) | 5 |
|---|---|
| Lift Time by Air Supply - No Load | --- |
| Lift Time by Air Supply - Load | --- |
| Air Pressure Range (psi) | 40-140 |
| Minimum Height (in) | 7.88 |
| Ram Lift (in) | 4.75 |
| Screw Extension (in) | 2.75 |
| Maximum Heights (in) | 15.38 |
| Weight (lbs) | 20.000000 |
