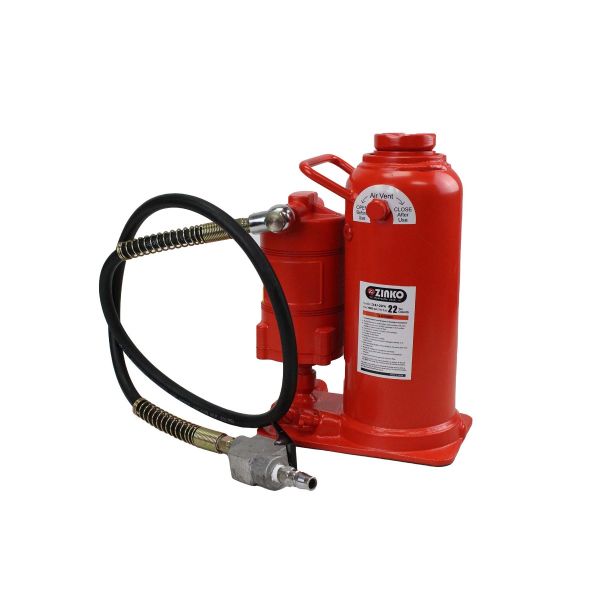

ZABJ-22PA, 22 Ton Air Hydraulic Bottle Jack
$553.14
In stock
SKU
61-22PA
Overview
(1.0) Connect this professional-grade 22-ton air hydraulic bottle jack directly to standard 80–140 PSI shop air lines to safely deliver 44,000 lbs of lifting power at the push of a button. Manufactured in Japan, it utilizes your facility's air supply to drive an internal hydraulic pump, paired with an ultra-rugged welded steel cylinder and a heavy-duty forged steel base built to resist high-pressure deformation. Outfitted with an internal safety overload valve, an oil bypass anti-overextend mechanism, and a protective in-line air valve filter screen, it provides safe, reliable, and hands-free lifting for heavy commercial transport and industrial machinery.
Special Features:
- Welded steel construction reduces metal fatigue allowing for a long service life
- Forged steel base increases resistance to high pressure and increases durability
- Oil bypass system prevents lifting ram from overextending
- Safety valve protects hydraulic system from over-load damage
- In-line filter screen located in air valve prohibits the entrance of contamination into the air hydraulic system
- Comes with an air vent valve to stop pressure from bleeding in reservoir
- Heat treated extension screw and release valve adds extra strength and life span
- Extremely strong and well designed swivel head bolt with 360 degree movement to prevent hose binding
- Spring coil protectors on both ends to prevent punctures
- Rust preventive coating on ram and extension screw
- Convenient push button flap type air operation valve
Country of Origin: Japan
| Capacity (Tons) | 22 |
|---|---|
| Lift Time by Air Supply - No Load | 50 |
| Lift Time by Air Supply - Load | 195 |
| Air Pressure Range (psi) | 80 - 140 |
| Minimum Height (in) | 10.50 |
| Ram Lift (in) | 6.00 |
| Screw Extension (in) | 3.00 |
| Maximum Heights (in) | 19.50 |
| Weight (lbs) | 36.000000 |
