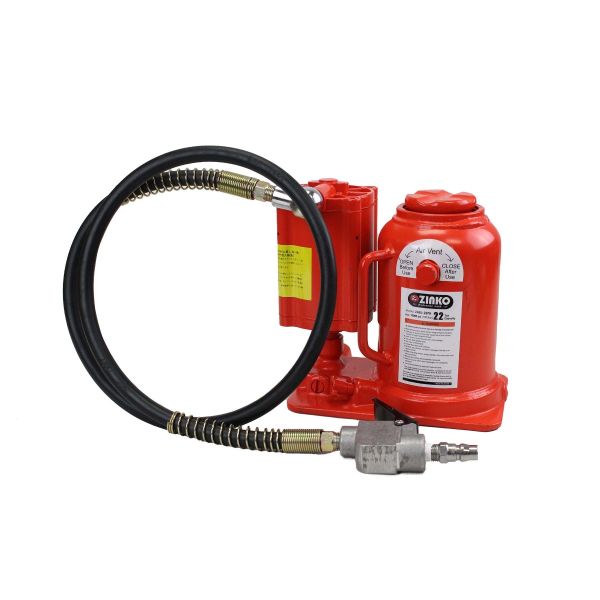

ZABJ-22PB, 22 Air Hydraulic Bottle Jack
$553.14
In stock
SKU
61-22PB
Overview
Connect this professional-grade 22-ton low-profile air hydraulic bottle jack directly to standard 80–140 PSI shop air lines to safely deliver 44,000 lbs of lifting power in restricted workspaces. Manufactured in Japan, it leverages your compressor's air supply to slide easily under collapsed semi-truck axles and low-clearance machinery using a stubby 7.25" minimum height. Featuring a robust welded steel cylinder and a thick, forged steel base that resists high-pressure deformation, this compact 26-lb unit provides a highly reliable, hands-free lifting solution where vertical clearance is limited.
Special Offer!
Ut enim ad minim veniam quis nostrud laboris nisi 20% off. Sed aliquip do eiusmod tempor: XYZ20
Special Features:
- Welded steel construction reduces metal fatigue allowing for a long service life
- Forged steel base increases resistance to high pressure and increases durability
- Oil bypass system prevents lifting ram from overextending
- Safety valve protects hydraulic system from over-load damage
- In-line filter screen located in air valve prohibits the entrance of contamination into the air hydraulic system
- Comes with an air vent valve to stop pressure from bleeding in reservoir
- Heat treated extension screw and release valve adds extra strength and life span
- Extremely strong and well designed swivel head bolt with 360 degree movement to prevent hose binding
- Spring coil protectors on both ends to prevent punctures
- Rust preventive coating on ram and extension screw
- Convenient push button flap type air operation valve
Country of Origin: Japan
| Capacity (Tons) | 22 |
|---|---|
| Lift Time by Air Supply - No Load | 35 |
| Lift Time by Air Supply - Load | 195 |
| Air Pressure Range (psi) | 80 - 140 |
| Minimum Height (in) | 7.25 |
| Ram Lift (in) | 3.75 |
| Screw Extension (in) | 1.50 |
| Maximum Heights (in) | 12.50 |
| Weight (lbs) | 26.000000 |
