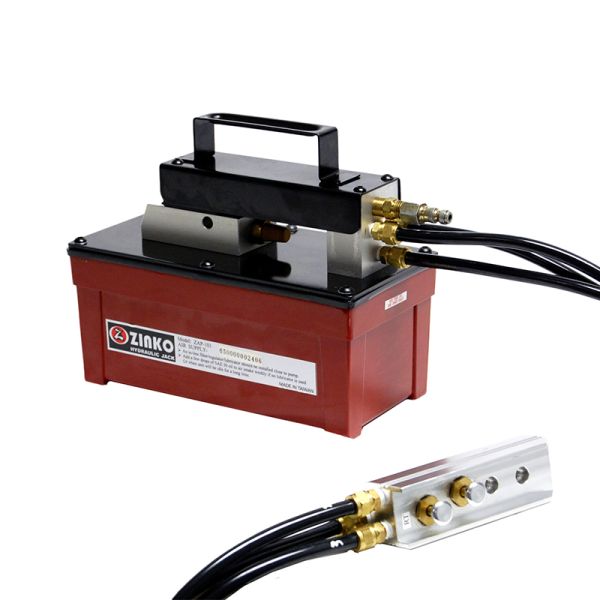

ZAP-101-1M, 100 Cu. In. Air Pump With Remote Switch
The Zinko ZAP-101-1M is a heavy-duty, 10,000 PSI air-over-hydraulic pump equipped with an all-aluminum remote hand pendant for precise distance actuation. Featuring standard 10-foot pendant air hoses, this configuration allows technicians to operate hydraulic components from a safe distance, providing a better vantage point of the active load. Driven by an all-metal air motor operating on a 40–140 PSI input range, the single-speed system utilizes quality lightweight internal components to optimize flow, generating a 77 cubic inch per minute no-load flow rate that shifts to 13 cubic inches per minute under full load.
The pump features a standard 3/8" NPT fluid port and integrates a pressure relief valve alongside dedicated hydraulic pickup, hydraulic output, and air inlet filters to maximize component protection. Built to deliver years of reliable service with a standard 98 cubic inch usable oil capacity, this 30 lb unit features a durable anodized aluminum reservoir. To safeguard long-term shop investments, this model is fully serviceable via compatible rebuild kits sold separately.
Special Features:
- Design based on work proven ZAP series pump.
- Pressure relief valve, hydraulic pickup filter, hydraulic output filter, and air inlet filter protect pump and hydraulic components from damage.
- Can be used anywhere where compressed air is available.
- Pumps are built to withstand years of service and can be completely rebuilt with Zinko rebuild kits.
- High fluid output utilizing minimal air input is made possible with the usage of quality lightweight internal components engineered to maximize flow rate, outperforming competitor’s pumps almost two to one.
- All aluminum remote hand control is lightweight and durable allowing trouble-free remote actuation of hydraulic components.
- Standard ten foot pendant air hoses allow operator to control hydraulic components from a safe distance.
- 1M series pumps are available in many different configurations including various sized aluminum and polyethylene reservoirs making these pumps capable of powering many types of hydraulic components.
Country of Origin: Taiwan
| Oil Capacity (in³) | 98 |
|---|---|
| Pressure Rating (psi) | 10,000 |
| Output Flow Rate - No Load (in³/min) | 77 |
| Output Flow Rate - Load (in³/min) | 13 |
| Air Pressure Range (psi) | 40-140 |
| Air Consumption (scfm) | 10 |
| Sound Rate (dba) | 85 |
| Port Size (NPT) | 3/8" |
| Weight (lbs) | 30.000000 |
