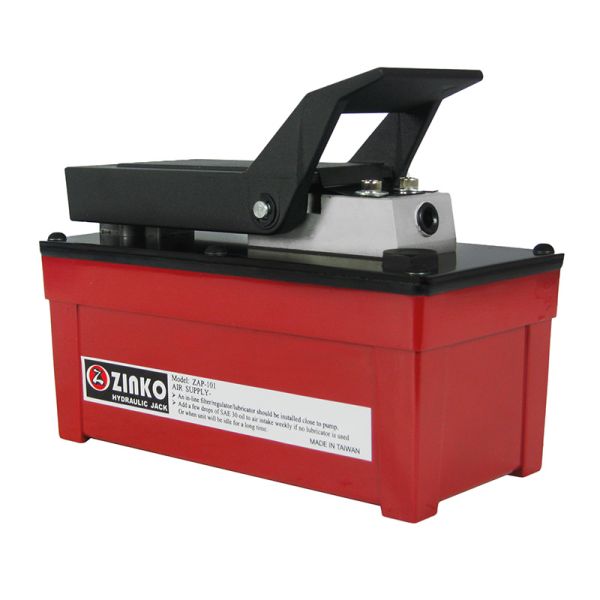

ZAP-101, 100 in³ Air Pump With Steel Reservoir
The Zinko ZAP-101 is a heavy-duty, 10,000 PSI air-over-hydraulic pump engineered to power single-acting hydraulic cylinders across demanding automotive and industrial applications. Driven by an all-metal air motor operating on a 40–140 PSI input range, this single-speed pump delivers a high-volume 98 cubic inch usable oil capacity, making it an excellent match for heavy vehicle collision frame racks, small presses, and structural lifting setups. The system is designed to maximize throughput, generating a no-load flow rate of 77 cubic inches per minute that transitions down to 13 cubic inches per minute once fully loaded.
Equipped with a standard 3/8" NPT fluid port, the pump integrates cleanly into existing shop configurations while utilizing an internal relief valve to safeguard vital system components from over-pressurization. A dedicated two-stage release mechanism provides smooth control by accelerating ram return and systematically dampening hydraulic line shock during decompression. Built for long-term durability in high-wear environments, this 18 lb rugged unit features a standard anodized aluminum reservoir and supports extended service lifespans via fully compatible repair kits available separately.
Special Features:
- This model beats the leading competitors in oil flow delivery by as much as 2 to 1, doing more work in less time.
- Two stage release mechanism for fast ram return while reducing hydraulic shock.
- Operates easily by hand or foot.
- Shipped with shipping screw for leak protection, switch to air vent before use to increase performance.
- Standard size comes with heavy-duty anodized aluminum reservoir. Aluminum reservoir with see through window, or plastic reservoir will be available upon request. These reservoirs are interchangeable.
Country of Origin: Taiwan
| Oil Capacity (in³) | 98 |
|---|---|
| Pressure Rating (psi) | 10,000 |
| Output Flow Rate - No Load (in³/min) | 77 |
| Output Flow Rate - Load (in³/min) | 13 |
| Air Pressure Range (psi) | 40-140 |
| Air Consumption (scfm) | 10 |
| Sound Rate (dba) | 85 |
| Port Size (NPT) | 3/8" |
| Weight (lbs) | 18.000000 |
