ZAP-101P-1M, 100 in³ Air Pump With Remote Switch Plastic Reservoir
$694.29
Out of stock
SKU
22-101P-1M
Overview

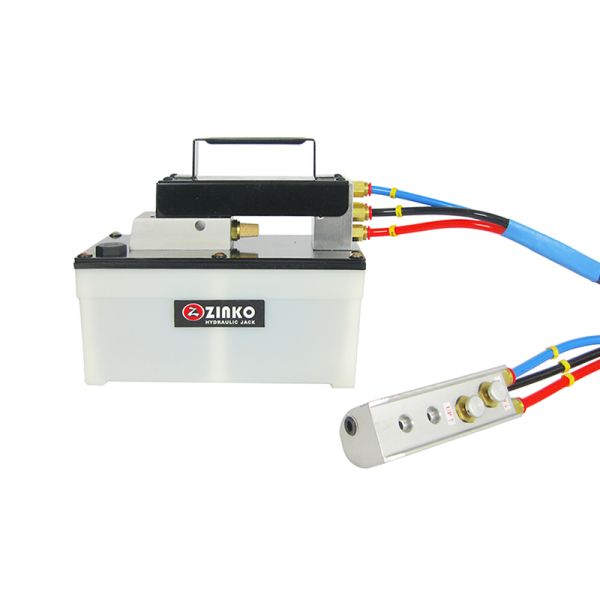

The Zinko ZAP-101P-1M is a portable, 10,000 PSI air-over-hydraulic pump combining a lightweight composite housing with an all-aluminum remote hand pendant for precise distance actuation. Equipped with standard 10-foot pendant air hoses, this configuration allows technicians to operate components from a safe distance while maintaining a clear vantage point of the load in rugged field conditions. Driven by an all-metal air motor operating on a 40–140 PSI input range, the single-speed system utilizes an impact-resistant 98 cubic inch nylon reservoir to reduce overall transport weight to 21 lbs while providing total corrosion resistance.
The pump delivers a no-load flow rate of 77 cubic inches per minute that transitions to 13 cubic inches per minute under full load. Featuring a standard 3/8" NPT fluid port for straightforward integration, the unit incorporates an internal pressure relief valve alongside dedicated filtering components to maximize protection against system contamination. This durable, mobile assembly replaces manual pumps to significantly lower operator fatigue and supports an extended service lifespan via fully compatible repair kits sold separately.
Special Features:
- Design based on work proven ZAP series pump. Pressure relief valve, hydraulic pickup filter, hydraulic output filter, and air inlet filter protect pump and hydraulic components from damage.
- Can be used anywhere where compressed air is available.
- Pumps are built to withstand years of service and can be completely rebuilt with Zinko rebuild kits.
- High fluid output utilizing minimal air input is made possible with the usage of quality lightweight internal components engineered to maximize flow rate, outperforming competitor’s pumps almost two to one.
- All aluminum remote hand control is lightweight and durable allowing trouble-free remote actuation of hydraulic components.
- Standard ten foot pendant air hoses allow operator to control hydraulic components from a safe distance.
- 1M series pumps are available in many different configurations including various sized aluminum and polyethylene reservoirs making these pumps capable of powering many types of hydraulic components.
Country of Origin: Taiwan
| Oil Capacity (in³) | 98 |
|---|---|
| Pressure Rating (psi) | 10000 |
| Output Flow Rate - No Load (in³/min) | 77 |
| Output Flow Rate - Load (in³/min) | 13 |
| Air Pressure Range (psi) | 40-140 |
| Air Consumption (scfm) | 10 |
| Sound Rate (dba) | 85 |
| Port Size (NPT) | 3/8" |
| Weight (lbs) | 25.000000 |
