ZAP-101P, 100 in³ Air Pump With Plastic Reservoir
$436.63
In stock
SKU
22-101P
Overview

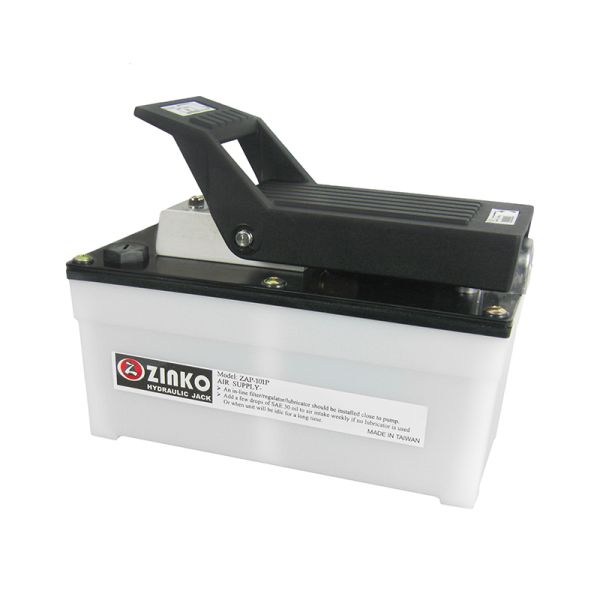

The Zinko ZAP-101P is a portable, 10,000 PSI air-over-hydraulic pump equipped with a lightweight, impact-resistant 98 cubic inch nylon reservoir. By replacing the standard metal tank with a composite housing, this 17 lb unit reduces transport weight while offering total corrosion resistance in harsh field environments. Powered by an all-metal air motor operating on a 40–140 PSI input range, the single-speed system delivers a no-load flow rate of 77 cubic inches per minute that shifts to 13 cubic inches per minute when under load.
The pump features a standard 3/8" NPT fluid port for straightforward integration and utilizes a built-in internal relief valve to safeguard connected components from over-pressurization. A dedicated two-stage release mechanism ensures smooth operator control by accelerating ram return and minimizing hydraulic line shock during decompression. Optimized for mobile applications and field service, this durable unit takes the place of manual pumps to significantly lower operator fatigue. Fully compatible repair kits are also available separately to extend service life.
Special Features:
- All models feature an internal relief valve to protect system components.
- Portable to any job site equipped with compressed air. Takes the place of manual pumps, which reduces operator fatigue.
- A reliable all-metal air motor make for easy maintenance.
- An internal relief valve helps protect system components.
- While connecting this pump with multiple cylinders, larger reservoir is more efficient for the applications.
- With appropriated valves & accessories, these pumps can easily connect and work with 2 to 4 cylinders.
Country of Origin: Taiwan
| Oil Capacity (in³) | 98 |
|---|---|
| Pressure Rating (psi) | 10,000 |
| Output Flow Rate - No Load (in³/min) | 77 |
| Output Flow Rate - Load (in³/min) | 13 |
| Air Pressure Range (psi) | 40-140 |
| Air Consumption (scfm) | 10 |
| Sound Rate (dba) | 85 |
| Port Size (NPT) | 3/8" |
| Weight (lbs) | 17.000000 |
