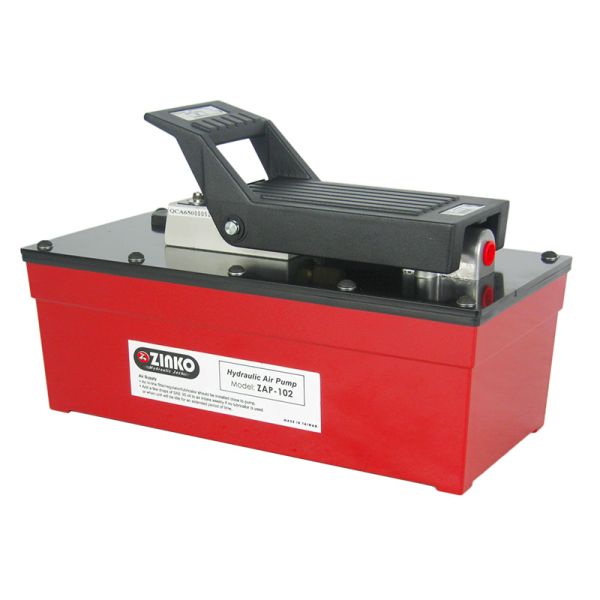

ZAP-102, 183 in³ Air Pump With Steel Reservoir
$604.80
In stock
SKU
22-102
Overview
The Zinko ZAP-102 is a single-speed, 10,000 PSI air-over-hydraulic pump equipped with an expanded 183 cubic inch (0.8 gallon) steel reservoir. Engineered for heavy shop production, its increased fluid volume provides the necessary capacity to efficiently power multi-cylinder arrays of 2 to 4 cylinders or small production presses simultaneously. Driven by an all-metal air motor operating on a 40–140 PSI input range, the system delivers a no-load flow rate of 77 cubic inches per minute that transitions down to 13 cubic inches per minute once fully loaded.
The pump features a standard 3/8" NPT fluid port layout and integrates an internal relief valve to safeguard connected components from over-pressurization. A dedicated two-stage release mechanism ensures smooth control by accelerating ram return and systematically dampening hydraulic line shock during decompression. This 24 lb rugged unit features a standard heavy-gauge steel reservoir built for high-demand shop environments and is fully serviceable via compatible repair kits sold separately.
Special Features:
- All models feature an internal relief valve to protect system components.
- Portable to any job site equipped with compressed air. Takes the place of manual pumps, which reduces operator fatigue.
- A reliable all-metal air motor make for easy maintenance.
- An internal relief valve helps protect system components.
- While connecting this pump with multiple cylinders, larger reservoir is more efficient for the applications.
- With appropriated valves & accessories, these pumps can easily connect and work with 2 to 4 cylinders.
Country of Origin: Taiwan
| Oil Capacity (in³) | 183 |
|---|---|
| Pressure Rating (psi) | 10,000 |
| Output Flow Rate - No Load (in³/min) | 77 |
| Output Flow Rate - Load (in³/min) | 13 |
| Air Pressure Range (psi) | 40-140 |
| Air Consumption (scfm) | 10 |
| Sound Rate (dba) | 85 |
| Port Size (NPT) | 3/8" |
| Weight (lbs) | 24.000000 |
