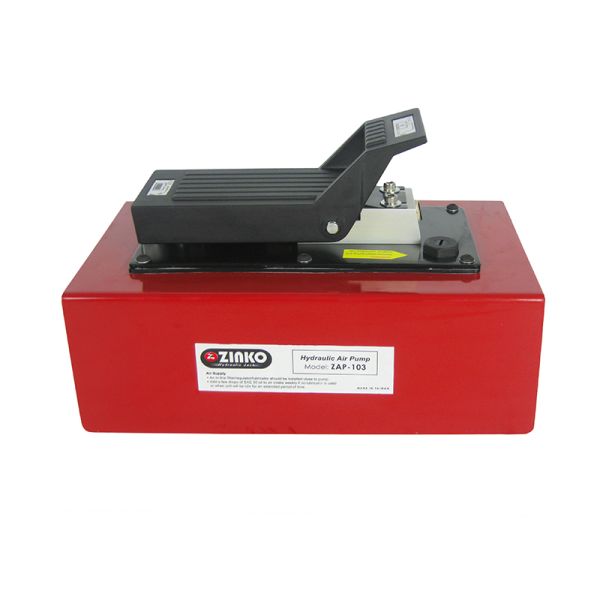

ZAP-103, 254 in³ Air Pump With Steel Reservoir
$714.34
In stock
SKU
22-103
Overview
The Zinko ZAP-103 is a high-capacity, 10,000 PSI air-over-hydraulic pump featuring a large 305 cubic inch (1.8 gallon) steel reservoir. Built to satisfy high-volume fluid demands, this single-speed unit provides the substantial oil capacity needed to drive multiple large-scale cylinders and heavy shop equipment without the risk of reservoir depletion. Driven by an all-metal air motor operating on a 40–140 PSI input range, the pump generates a no-load flow rate of 77 cubic inches per minute that shifts to 13 cubic inches per minute under full load.
Equipped with a standard 3/8" NPT fluid port, the pump integrates cleanly into existing system configurations while utilizing an internal relief valve to protect system components from over-pressurization. A dedicated two-stage release mechanism provides precise operator control by accelerating ram return and minimizing hydraulic line shock during decompression. This 36 lb durable unit features a rugged steel tank for maximum component protection and supports an extended service lifespan via compatible repair kits sold separately.
Special Features:
- All models feature an internal relief valve to protect system components.
- Portable to any job site equipped with compressed air. Takes the place of manual pumps, which reduces operator fatigue.
- A reliable all-metal air motor make for easy maintenance.
- An internal relief valve helps protect system components.
- While connecting this pump with multiple cylinders, larger reservoir is more efficient for the applications.
- With appropriated valves & accessories, these pumps can easily connect and work with 2 to 4 cylinders.
Country of Origin: Taiwan
| Oil Capacity (in³) | 305 |
|---|---|
| Pressure Rating (psi) | 10,000 |
| Output Flow Rate - No Load (in³/min) | 77 |
| Output Flow Rate - Load (in³/min) | 13 |
| Air Pressure Range (psi) | 40-140 |
| Air Consumption (scfm) | 10 |
| Sound Rate (dba) | 85 |
| Port Size (NPT) | 3/8" |
| Weight (lbs) | 36.000000 |
