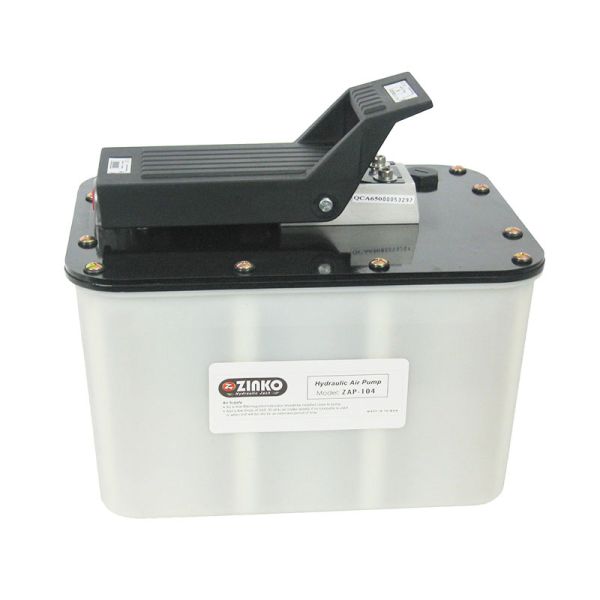

ZAP-104, 2 Gal. Air Pump With Plastic Reservoir

$776.06
In stock
SKU
22-104
Overview

The Zinko ZAP-104 is an industrial-grade, 10,000 PSI air-over-hydraulic pump outfitted with a massive 460 cubic inch (2 gallon) heavy-gauge steel reservoir. This single-speed model is engineered specifically to manage large oil volume demands, making it the ideal choice for major structural lifting arrays, heavy-duty mobile machinery, and multi-ram production setups. Driven by an all-metal air motor with a 40–140 PSI operating window, it outputs a no-load flow rate of 77 cubic inches per minute before shifting to 13 cubic inches per minute under full mechanical load.

A standard 3/8" NPT fluid port allows for straightforward connection to existing layouts, while an integrated internal safety valve guards against over-pressurization. The foot-actuated pedal drives a two-stage release configuration, allowing users to accelerate ram return while dampening structural hydraulic shock upon decompression. This rugged unit provides maximum structural rigidity for high-demand shop service and remains fully field-serviceable via compatible repair kits sold separately.

Special Features:

  • All models feature an internal relief valve to protect system components.
  • Portable to any job site equipped with compressed air. Takes the place of manual pumps, which reduces operator fatigue.
  • A reliable all-metal air motor make for easy maintenance.
  • An internal relief valve helps protect system components.
  • While connecting this pump with multiple cylinders, larger reservoir is more efficient for the applications.
  • With appropriated valves & accessories, these pumps can easily connect and work with 2 to 4 cylinders.

    Country of Origin: Taiwan
More Information
Oil Capacity (in³) 454
Pressure Rating (psi) 10,000
Output Flow Rate - No Load (in³/min) 77
Output Flow Rate - Load (in³/min) 13
Air Pressure Range (psi) 40-140
Air Consumption (scfm) 10
Sound Rate (dba) 85
Port Size (NPT) 3/8"
Weight (lbs) 35.000000
