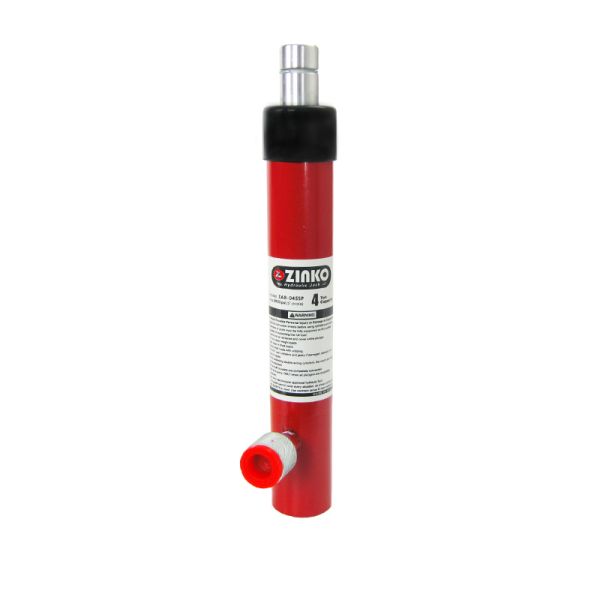

ZAR-045SP,4 Ton 5" Stroke Automotive Cylinder - SNAP
$135.77
In stock
SKU
20045
Overview
When the job calls for more reach and more force than a compact cylinder offers, the ZAR-045SP delivers 4 tons of capacity and a 5" stroke. Its snap-type inner base accepts Zinko's snap-together collision repair components for fast set-up, and the internal spring return resets the plunger without extra effort. At 5 lbs, it stays easy to carry and position, and a quick-connect coupler gets you hooked up and ready to work.
Special Features:
- All models come with either 1/4" NPT or 3/8" NPT regular-flow quick-connection couplers and dust caps
- 10 ton models designed with internal threads on rod end, which can be easily converted for threaded or snap-type application.
- Matching base is available upon request
- 4 ton models come with snap-type inner base
- 2 ton model comes with flat-type base and screw extension on top
Country of Origin: Taiwan
| Capacity (Tons) | 4 |
|---|---|
| Stroke (in) | 4.00 |
| Oil Capacity (in³) | 3.96 |
| Cylinder Effective Area (in²) | 0.99 |
| Minimum Height (in) | 10.59 |
| Maximum Heights (in) | 14.56 |
| Outside Diameter (in) | Ø 1.77 |
| Weight (lbs) | 5.000000 |
