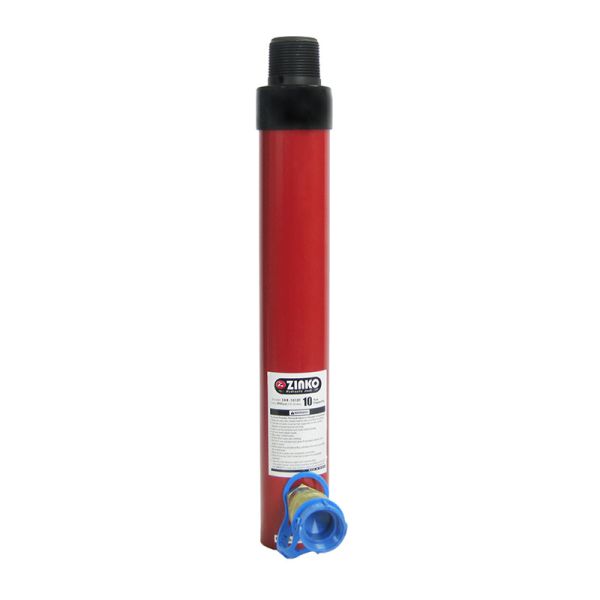

ZAR-1010T, 10 ton 10" Stroke Automotive Cylinder - THREADED
$498.34
Out of stock
SKU
201010T
Overview
These industrial quality, general purpose cylinders are designed for use in a variety of applications where lifting, pushing, bending or holding may be required. Ideal for use in shop, agricultural, automotive/ truck service and construction maintenance. All Models come with 3/8" NPT fast-flow quick-connection coupler and dust cap. All cylinders designed with base mounting holes (5/16-18 UNC) Collar plunger threads and base mounting holes provides for easy fixture. Optional adapters make it super easy and cost efficient to convert our 10 ton ram to snap-type or threaded-type applications. All models are designed for use in any position and feature base mounting holes for easy attachment to almost any fixture.
Special Offer!
Ut enim ad minim veniam quis nostrud laboris nisi 20% off. Sed aliquip do eiusmod tempor: XYZ20
Special Features:
- All models come with either 1/4" NPT or 3/8" NPT regular-flow quick-connection couplers and dust caps
- 10 ton models designed with internal threads on rod end, which can be easily converted for threaded or snap-type application.
- Matching base is available upon request
- 4 ton models come with snap-type inner base
- 2 ton model comes with flat-type base and screw extension on top
Country of Origin: Taiwan
| Capacity (Tons) | 10 |
|---|---|
| Stroke (in) | 10.00 |
| Oil Capacity (in³) | 24.70 |
| Cylinder Effective Area (in²) | 2.46 |
| Minimum Height (in) | 16.12 |
| Maximum Heights (in) | 26.50 |
| Outside Diameter (in) | Ø 2.24 |
| Weight (lbs) | 17.000000 |
