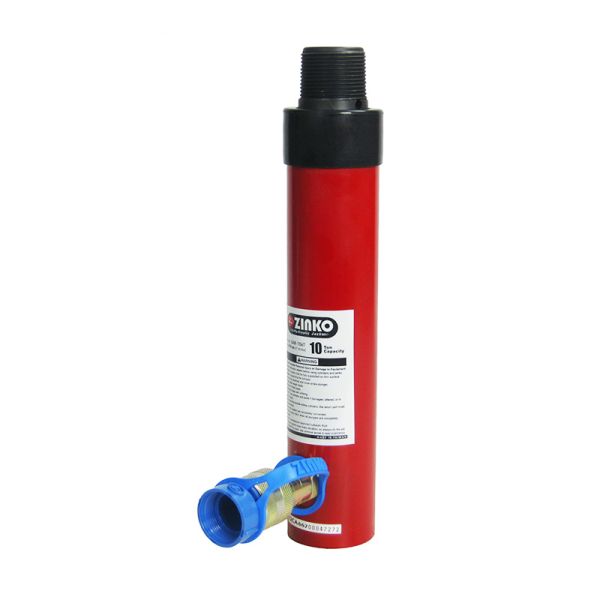

ZAR-106T, 10 ton 6" Stroke Automotive Cylinder - THREADED

$325.29
In stock
SKU
20106T
Overview
These industrial quality, general purpose cylinders are designed for use in a variety of applications where lifting, pushing, bending or holding may be required. Ideal for use in shop, agricultural, automotive/ truck service and construction maintenance. All Models come with 3/8" NPT fast-flow quick-connection coupler and dust cap. All cylinders designed with base mounting holes (5/16-18 UNC) Collar plunger threads and base mounting holes provides for easy fixture. Optional adapters make it super easy and cost efficient to convert our 10 ton ram to snap-type or threaded-type applications. All models are designed for use in any position and feature base mounting holes for easy attachment to almost any fixture.

Special Features:

  • All models come with either 1/4" NPT or 3/8" NPT regular-flow quick-connection couplers and dust caps
  • 10 ton models designed with internal threads on rod end, which can be easily converted for threaded or snap-type application.
  • Matching base is available upon request
  • 4 ton models come with snap-type inner base
  • 2 ton model comes with flat-type base and screw extension on top

    Country of Origin: Taiwan



More Information
Capacity (Tons) 10
Stroke (in) 6.00
Oil Capacity (in³) 14.80
Cylinder Effective Area (in²) 2.46
Minimum Height (in) 12.25
Maximum Heights (in) 19.50
Outside Diameter (in) Ø 2.24
Weight (lbs) 12.000000
