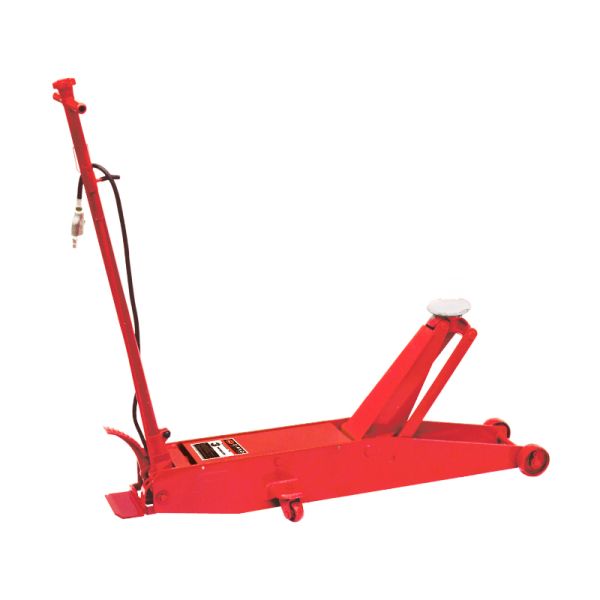

ZASJ-30M, 3 Ton Heavy Duty Air Hydraulic Service Jack
$2,240.00
Out of stock
SKU
4130
Overview
Easy to operate push-button floor jack with an air pump. Ideal for use in tight spaces including on trucks, automotive and agricultural equipment.
Special Features:
- The jack can be operated either manually or pneumatically.
- Overall construction of selected steel frame, full swivel rear caster wheels and large lifting saddle provide easy positioning and enable these jacks to safely lift to their rated capacities.
- Quick lift foot pump can easily lift the jack saddle to the loading point.
- Pneumatic operation requires air pressure ranges from 90 to 140 psi operated by a push button for quick lift.
- Push button control unit can be easily removed from the handle enabling operator to view the load from various angles.
- Large release knob provides metered release control.
- Extra long low chassis reaches under low overhangs for easy load positioning.
Country of Origin: Japan
Capacity (Tons) | 3 |
---|---|
Minimum Height (in) | 4.96 |
Hydraulic Lift (in) | 18.90 |
Maximum Heights (in) | 23.86 |
Chassis Length (in) | 53.15 |
Chassis Width (in) | 14.37 |
Height of Frame (in) | 7.48 |
Operating (psi) | 116-145 |
Weight (lbs) | 209.000000 |
