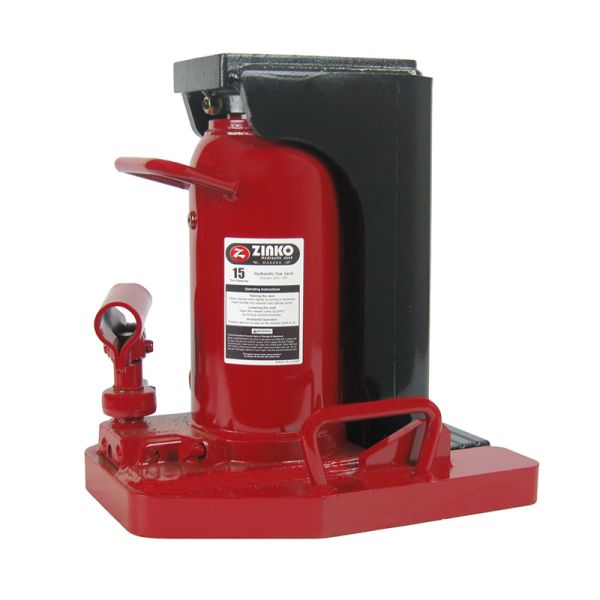

ZHC-15V, 15/30 Ton Toe Jack
$4,172.14
In stock
Only 2 left
SKU
80-15
Overview
The Zinko ZHC-15V is a high-capacity, dual-point hydraulic toe jack engineered for maximum-load structural lifting and heavy industrial rigging. Built to ANSI and JIS standards, this model delivers a 15-ton lifting capacity at a low 1.26" starting toe height and a 30-ton capacity at the head across a 5.51" stroke. Constructed with a fully welded steel body to prevent oil leakage, a heat-treated housing, and a 360° rotating lever socket, it provides structural stability under peak operational loads.
Special Offer!
Ut enim ad minim veniam quis nostrud laboris nisi 20% off. Sed aliquip do eiusmod tempor: XYZ20
Special Features:
- 360° turn lever socket tor operation at any direction
- Low toe height is ideal tor use where clearance is tight
- Designed tor tine adjustments. Ideal tor delicate work such as installation of precision machines
- Welded steel construction prevents oil leakage and a special heat treatment that reduces metal fatigue
Country of Origin: Japan
| Capacity (Tons) | 15 |
|---|---|
| Minimum Height - Toe (in) | 1.26 |
| Minimum Height - Head (in) | 13.58 |
| Maximum Height - Toe (in) | 6.77 |
| Maximum Height - Head (in) | 19.09 |
| Ram Lift (in) | 5.51 |
| Toe Area (in) | 4.33 x 2.36 |
| Base Area (in) | 12.63 x 10.15 |
| Weight (lbs) | 117.000000 |
| Stroke (in) | 5.51" |
