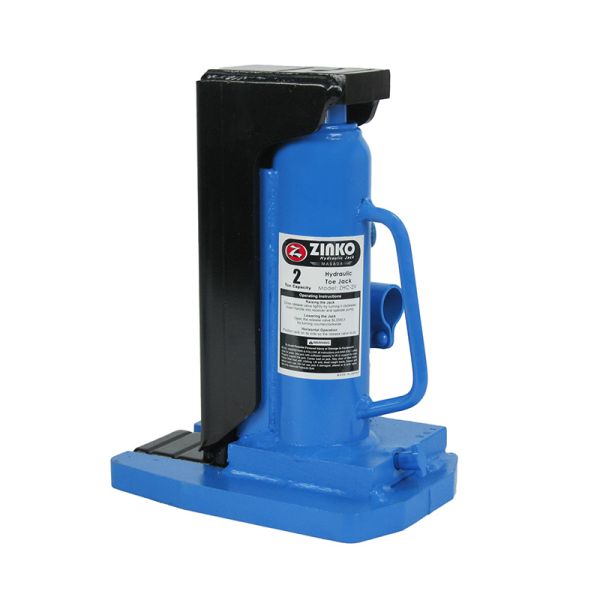

ZHC-2V, 2/5 Ton Toe Jack
The ZHC-2V dual-capacity toe jack is engineered for demanding industrial rigging, machinery moving, and heavy lifting applications with restricted clearances. This unit offers two distinct lifting positions, delivering a dependable 2-ton capacity at the toe and a full 5-ton capacity on the top head. The rugged steel body is fully welded to eliminate potential leak points and ensure long-term structural reliability.
Featuring an ultra-low profile minimum toe height of just 0.63", it easily slides under heavy machinery and components where standard jacks cannot fit. The 4.44" ram stroke provides a smooth lift, extending the toe to a maximum height of 5.07" and the top head to 13.89".
Navigating confined shop environments is simplified by the 360-degree rotating lever socket and the included 24.25” three-piece handle, allowing operators to gain maximum leverage from any working orientation.
Exceptional structural stability is maintained by the heavy-duty 6.3" x 8.9" base, which distributes weight evenly during off-center maneuvers.
For a complete material handling solution, this model is fully compatible with our industrial speed rollers, sold separately.
Manufactured in Japan under strict quality standards.
Special Features:
- 360° turn lever socket tor operation at any direction
- Low toe height is ideal tor use where clearance is tight
- Designed tor tine adjustments. Ideal tor delicate work such as installation of precision machines
- Welded steel construction prevents oil leakage and a special heat treatment that reduces metal fatigue
Country of Origin: Japan
| Capacity (Tons) | 2 |
|---|---|
| Minimum Height - Toe (in) | 0.63 |
| Minimum Height - Head (in) | 9.44 |
| Maximum Height - Toe (in) | 5.07 |
| Maximum Height - Head (in) | 13.89 |
| Ram Lift (in) | 4.44 |
| Toe Area (in) | 2.56 x 1.96 |
| Base Area (in) | 8.93 x 6.30 |
| Weight (lbs) | 20.000000 |
| Stroke (in) | 4.44" |
