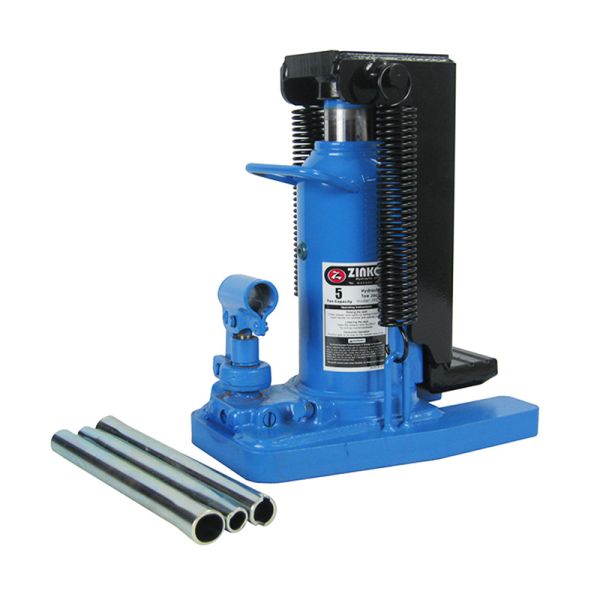

ZHC-5V, 5/10 Ton Toe Jack
The Zinko ZHC-5V dual-capacity toe jack is engineered for demanding industrial rigging, machinery moving, and heavy lifting applications with restricted clearances. This unit offers two distinct lifting positions, delivering a dependable 5-ton capacity at the toe and a full 10-ton capacity on the top head. The rugged steel body is fully welded to eliminate potential leak points and ensure long-term structural reliability.
Featuring an ultra-low profile minimum toe height of just 0.86", it easily slides under heavy machinery and components where standard jacks cannot fit. The 4.72" ram stroke provides a smooth lift, extending the toe to a maximum height of 5.59" and the top head to 16.14".
Navigating confined shop environments is simplified by the 360-degree rotating lever socket and the included 24.25” three-piece handle, allowing operators to gain maximum leverage from any working orientation. Exceptional structural stability is maintained by the heavy-duty 10.31" x 7.16" base, which distributes weight evenly during off-center maneuvers.
For a complete material handling solution, this model is fully compatible with our industrial speed rollers, sold separately.
Manufactured in Japan under strict quality standards.
Special Features:
- 360° turn lever socket tor operation at any direction
- Low toe height is ideal tor use where clearance is tight
- Designed tor tine adjustments. Ideal tor delicate work such as installation of precision machines
- Welded steel construction prevents oil leakage and a special heat treatment that reduces metal fatigue
Country of Origin: Japan
| Capacity (Tons) | 5 |
|---|---|
| Minimum Height - Toe (in) | 0.86 |
| Minimum Height - Head (in) | 11.41 |
| Maximum Height - Toe (in) | 5.59 |
| Maximum Height - Head (in) | 16.14 |
| Ram Lift (in) | 4.72 |
| Toe Area (in) | 2.95 x 2.24 |
| Base Area (in) | 10.31 x 7.16 |
| Weight (lbs) | 52.000000 |
| Stroke (in) | 4.72" |
