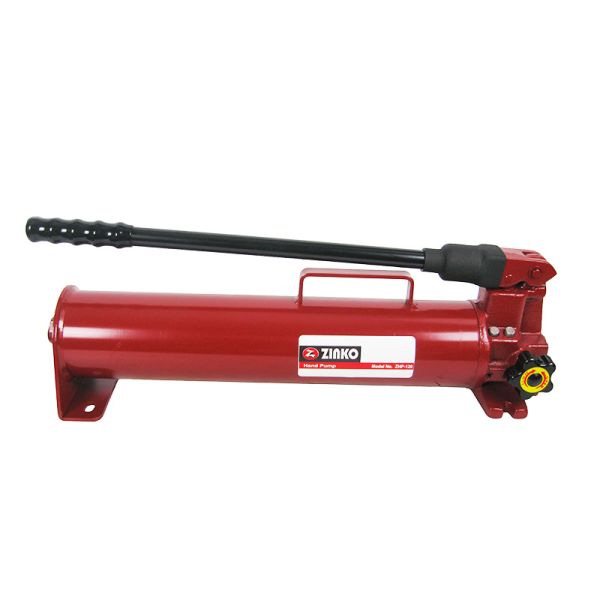

ZHP-120, 120 in³ Two Speed Hand Pump
$589.37
In stock
Only 1 left
SKU
23-120
Overview
The Zinko ZHP-120 is an industrial-capacity, two-speed, 10,000 PSI manual steel hand pump engineered to drive large-displacement cylinders and complex multi-tool rigging setups. It features an expanded 120 cubic inch usable steel reservoir to ensure adequate fluid volume for tough rigging and heavy welding environments where composite tanks are unsuitable. Weighing 31 lbs, the unit integrates a rugged all-steel construction, chrome-plated wear rods to eliminate fluid bypassing, heavy-duty handle return springs, a 3/8" NPT port, and an external adjustable pressure relief valve.
Special Features:
- Two Speed pump design is faster and requires less handle strokes reducing operator fatigue.
- Works with a wide variety of rams including short, push, spreader and snap-set types.
- Extremely portable, great for on site use.
- Chrome-plated piston rods for long pump life.
- Polyurethane seals allow greater cycle counts reducing service requirements.
- Easy to mount design.
- Works with "quick-connect" couplers for fast set up.
- Heavy duty return springs provide consistent performance.
Country of Origin: Taiwan
| Speed | 2 |
|---|---|
| Port Size (NPT) | 3/8" |
| Usable Oil Capacity (in³) | 120 |
| Pressure Rating - 1st Stage (psi) | 350 |
| Pressure Rating - 2nd Stage (psi) | 10,000 |
| Oil Displacement Per Stroke - 1st Stage (in³) | 0.79 |
| Oil Displacement Per Stroke - 2nd Stage (in³) | 0.17 |
| Max Handle Effort (lbs) | 87 |
| Piston Stroke (in) | 1.10 |
| Weight (lbs) | 31.000000 |
