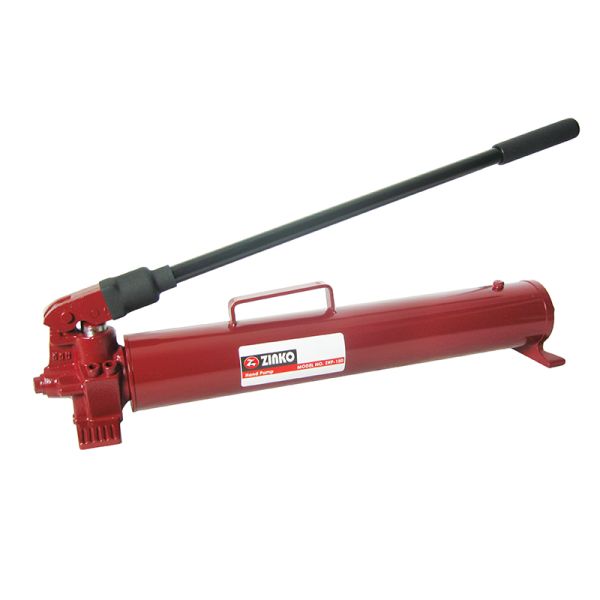

ZHP-150, 150 in³ Two Speed Hand Pump
$734.40
In stock
Only 1 left
SKU
23-150
Overview
The Zinko ZHP-150 is a heavy-duty, two-speed manual steel hand pump engineered to deliver high-pressure fluid power across demanding shop, agriculture, and mobile truck service setups. Housing a large 150 cubic inch usable steel reservoir, its automatic bypass mechanism optimizes low-pressure fluid displacement for rapid initial cylinder advancement before shifting under load to minimize operator stroke fatigue. Weighing 32 lbs, this ultra-durable unit integrates chrome-plated piston rods to prevent abrasive wear, rugged polyurethane internal seals, a fast-flow 3/8" NPT fluid port, and an externally adjustable pressure relief valve.
Special Features:
- Two Speed pump design is faster and requires less handle strokes reducing operator fatigue.
- Works with a wide variety of rams including short, push, spreader and snap-set types.
- Extremely portable, great for on site use.
- Chrome-plated piston rods for long pump life.
- Polyurethane seals allow greater cycle counts reducing service requirements.
- Easy to mount design.
- Works with "quick-connect" couplers for fast set up.
- Heavy duty return springs provide consistent performance.
Country of Origin: Taiwan
| Speed | 2 |
|---|---|
| Port Size (NPT) | 3/8" |
| Usable Oil Capacity (in³) | 150 |
| Pressure Rating - 1st Stage (psi) | 350 |
| Pressure Rating - 2nd Stage (psi) | 10,000 |
| Oil Displacement Per Stroke - 1st Stage (in³) | 0.79 |
| Oil Displacement Per Stroke - 2nd Stage (in³) | 0.17 |
| Max Handle Effort (lbs) | 87 |
| Piston Stroke (in) | 1.10 |
| Weight (lbs) | 32.000000 |
