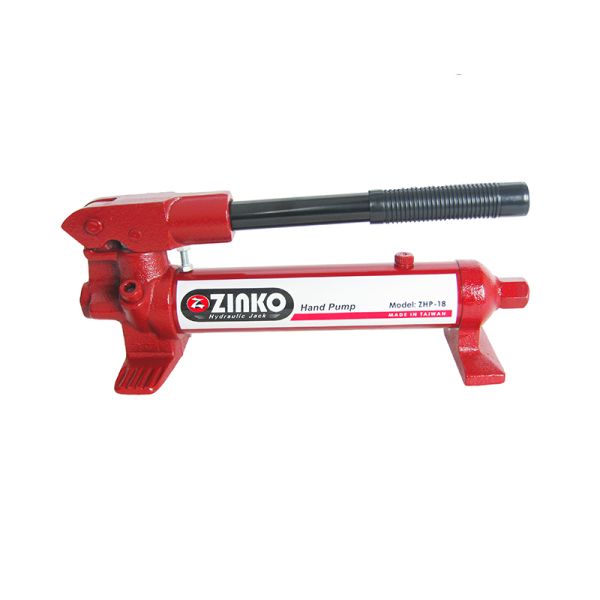

ZHP-18, 18 in³ Single Speed Hand Pump
$291.60
In stock
Only 1 left
SKU
23-018
Overview
The Zinko ZHP-18 is a compact, 10,000 PSI single-speed manual steel hand pump built for general-purpose maintenance and onsite shop applications. Featuring a highly durable, leak-proof steel construction, its compact design houses an 18 cubic inch usable fluid reservoir to reliably power short rams, spreaders, and small snap-set tooling. Engineered for high cycle counts, the 14 lb unit integrates rugged polyurethane seals, chrome-plated piston rods to resist abrasive wear, a 1/4" NPT oil port, and an externally adjustable pressure relief valve for precise application flexibility.
Special Features:
- Works with a wide variety of rams including short, push, spreader and snap-set types.
- Extremely portable, great for on site use.
- Chrome-plated piston rods for long pump life.
- Polyurethane seals allow greater cycle counts reducing service requirements.
- Easy to mount design.
- Works with "quick-connect" couplers for fast set up.
- Heavy duty return springs provide consistent performance.
Country of Origin: Taiwan
| Speed | 1 |
|---|---|
| Port Size (NPT) | 1/4" |
| Usable Oil Capacity (in³) | 18 |
| Pressure Rating - 1st Stage (psi) | --- |
| Pressure Rating - 2nd Stage (psi) | 10,000 |
| Oil Displacement Per Stroke - 1st Stage (in³) | --- |
| Oil Displacement Per Stroke - 2nd Stage (in³) | 0.19 |
| Max Handle Effort (lbs) | 181 |
| Piston Stroke (in) | 0.47 |
| Weight (lbs) | 14.000000 |
