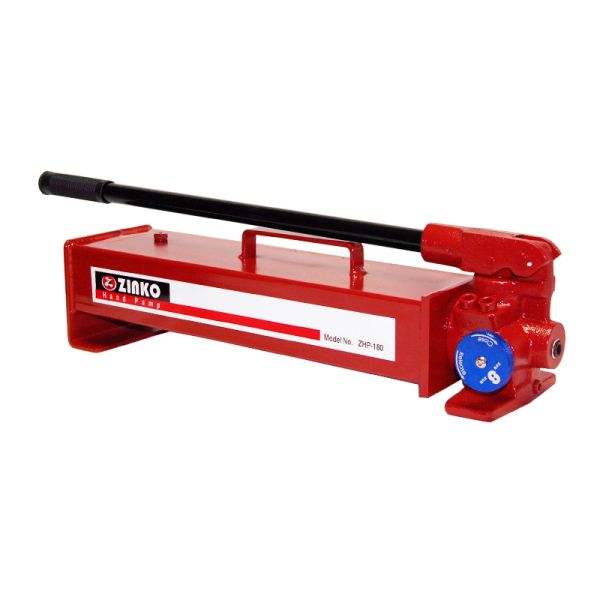

ZHP-180, 180 in³ Two Speed Hand Pump
$867.09
In stock
Only 2 left
SKU
23-180
Overview
The Zinko ZHP-180 is an industrial-capacity, two-speed manual steel hand pump built to manage large-displacement rams, spreaders, and heavy rigging configurations without fluid depletion. Featuring a massive 183 cubic inch usable steel reservoir, it utilizes a specialized two-stage valve design to maximize fluid movement while keeping handle effort low at max operating pressure. This 33 lb all-steel unit is equipped with a high-flow 3/8" NPT oil port, heavy-duty handle return springs, premium polyurethane line seals, and an external adjustable safety relief valve for precise field application flexibility.
Special Features:
- Two Speed pump design is faster and requires less handle strokes reducing operator fatigue.
- Works with a wide variety of rams including short, push, spreader and snap-set types.
- Extremely portable, great for on site use.
- Chrome-plated piston rods for long pump life.
- Polyurethane seals allow greater cycle counts reducing service requirements.
- Easy to mount design.
- Works with "quick-connect" couplers for fast set up.
- Heavy duty return springs provide consistent performance.
Country of Origin: Taiwan
| Speed | 2 |
|---|---|
| Port Size (NPT) | 3/8" |
| Usable Oil Capacity (in³) | 183 |
| Pressure Rating - 1st Stage (psi) | 200 |
| Pressure Rating - 2nd Stage (psi) | 10,000 |
| Oil Displacement Per Stroke - 1st Stage (in³) | 0.95 |
| Oil Displacement Per Stroke - 2nd Stage (in³) | 0.17 |
| Max Handle Effort (lbs) | 100 |
| Piston Stroke (in) | 1.10 |
| Weight (lbs) | 33.000000 |
