ZHP-28, 30 in³ Single Speed Hand Pump
$314.74
In stock
SKU
23-028
Overview

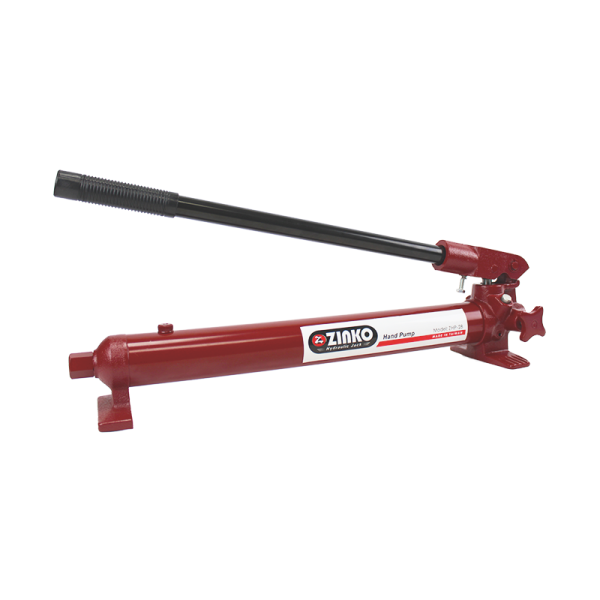

The Zinko ZHP-28 is a single-speed, 10,000 PSI manual steel hand pump built for shop production, lifting, and frame alignment. Featuring a leak-proof steel body and a threaded cast iron pump head, its 30 cubic inch usable fluid reservoir reliably drives medium-displacement short rams, spreaders, and pull cylinders. This 16 lb unit integrates durable polyurethane seals to maximize active cycle counts, chrome-plated piston rods to resist abrasive wear, a 1/4" NPT oil port, and an externally adjustable pressure relief valve for precise system flexibility.
Special Features:
- Works with a wide variety of rams including short, push, spreader and snap-set types.
- Extremely portable, great for on site use.
- Chrome-plated piston rods for long pump life.
- Polyurethane seals allow greater cycle counts reducing service requirements.
- Easy to mount design.
- Works with "quick-connect" couplers for fast set up.
- Heavy duty return springs provide consistent performance.
Country of Origin: Taiwan
| Speed | 1 |
|---|---|
| Port Size (NPT) | 1/4" |
| Usable Oil Capacity (in³) | 30 |
| Pressure Rating - 1st Stage (psi) | --- |
| Pressure Rating - 2nd Stage (psi) | 10,000 |
| Oil Displacement Per Stroke - 1st Stage (in³) | --- |
| Oil Displacement Per Stroke - 2nd Stage (in³) | 0.19 |
| Max Handle Effort (lbs) | 102 |
| Piston Stroke (in) | 0.47 |
| Weight (lbs) | 16.000000 |
