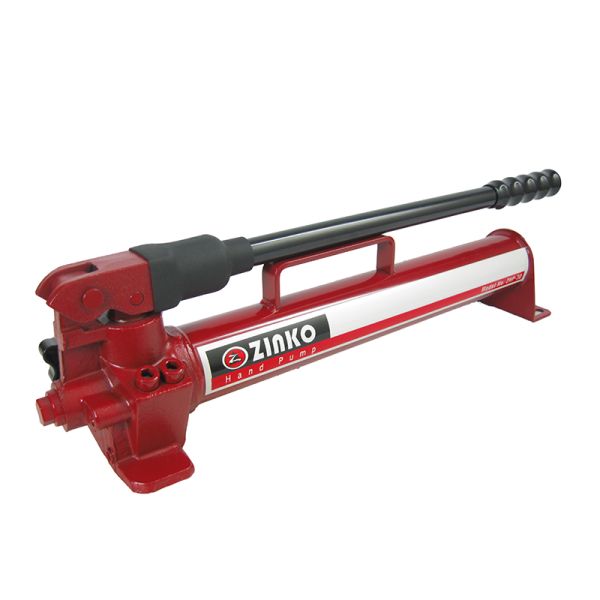

ZHP-30, 30 in³ Two Speed Hand Pump
$384.17
In stock
Only 2 left
SKU
23-030
Overview
The Zinko ZHP-30 is a two-speed, 10,000 PSI manual steel hand pump engineered for shop, agricultural, automotive, and construction maintenance applications. Housing a 30 cubic inch usable steel fluid reservoir, its integrated two-speed bypass mechanism delivers high-displacement low-pressure flow to accelerate initial cylinder engagement, significantly reducing operator handle strokes. This 17 lb unit features robust steel construction, chrome-plated piston rods to extend pump life, a standard fast-flow 3/8" NPT port, and an externally adjustable safety relief valve for complete system flexibility.
Special Features:
- Two Speed pump design is faster and requires less handle strokes reducing operator fatigue.
- Works with a wide variety of rams including short, push, spreader and snap-set types.
- Extremely portable, great for on site use.
- Chrome-plated piston rods for long pump life.
- Polyurethane seals allow greater cycle counts reducing service requirements.
- Easy to mount design.
- Works with "quick-connect" couplers for fast set up.
- Heavy duty return springs provide consistent performance.
Country of Origin: Taiwan
| Speed | 2 |
|---|---|
| Port Size (NPT) | 3/8" |
| Usable Oil Capacity (in³) | 30 |
| Pressure Rating - 1st Stage (psi) | --- |
| Pressure Rating - 2nd Stage (psi) | 10,000 |
| Oil Displacement Per Stroke - 1st Stage (in³) | --- |
| Oil Displacement Per Stroke - 2nd Stage (in³) | 0.19 |
| Max Handle Effort (lbs) | 102 |
| Piston Stroke (in) | 0.47 |
| Weight (lbs) | 17.000000 |
