ZHP-41, 40 in³ Single Speed Hand Pump
$339.43
In stock
SKU
23-041
Overview

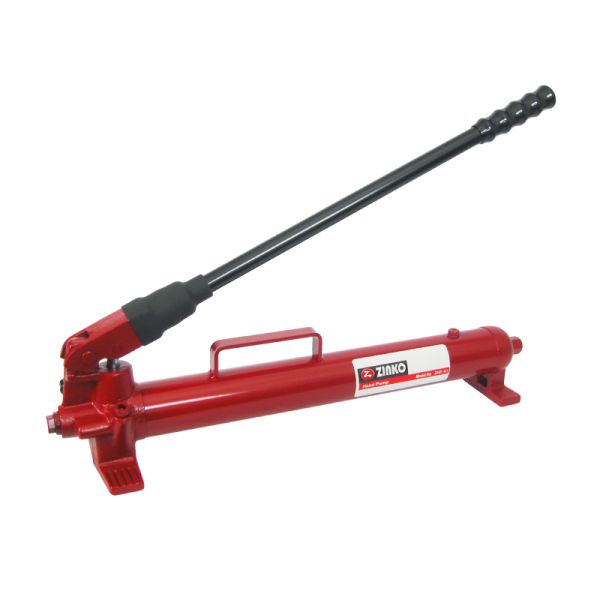

The Zinko ZHP-41 is a single-speed, 10,000 PSI manual steel hand pump engineered for harsh industrial construction, rigging, and agricultural field service. Built with a sealed all-steel body, it safely operates in all directions—including a vertical head-down position—and provides a 40 cubic inch oil capacity for welding and heavy-use environments where composite reservoirs fail. Weighing 19 lbs, it features a fast-flow 3/8" NPT fluid port for rapid cylinder response, an external adjustable safety relief valve, and high-density internal seals to eliminate fluid bypassing.
Special Features:
- Works with a wide variety of rams including short, push, spreader and snap-set types.
- Extremely portable, great for on site use.
- Chrome-plated piston rods for long pump life.
- Polyurethane seals allow greater cycle counts reducing service requirements.
- Easy to mount design.
- Works with "quick-connect" couplers for fast set up.
- Heavy duty return springs provide consistent performance.
Country of Origin: Taiwan
| Speed | 1 |
|---|---|
| Port Size (NPT) | 3/8" |
| Usable Oil Capacity (in³) | 42 |
| Pressure Rating - 1st Stage (psi) | --- |
| Pressure Rating - 2nd Stage (psi) | 10,000 |
| Oil Displacement Per Stroke - 1st Stage (in³) | --- |
| Oil Displacement Per Stroke - 2nd Stage (in³) | 0.19 |
| Max Handle Effort (lbs) | 98 |
| Piston Stroke (in) | 0.50 |
| Weight (lbs) | 19.000000 |
