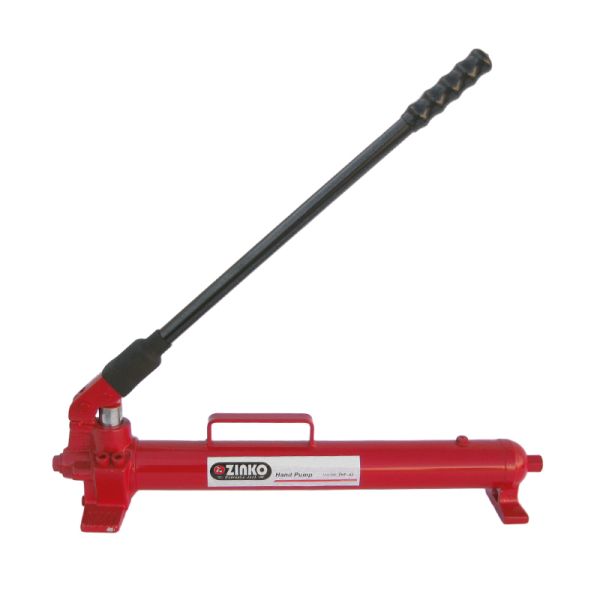

ZHP-42, 40 in³ Two Speed Hand Pump
$425.83
Out of stock
SKU
23-042
Overview
The Zinko ZHP-42 is a high-capacity, two-speed, 10,000 PSI manual steel hand pump built to power mid-sized cylinders, spreaders, and heavy shop maintenance setups. It features an expanded 42 cubic inch usable fluid capacity paired with an automatic two-speed design that maximizes fluid displacement before shifting under load to minimize stroke effort. Weighing 21 lbs, the heavy-duty unit integrates rugged polyurethane seals to handle extreme cycle counts, a fast-flow 3/8" NPT port, heavy-duty handle return springs, and an external adjustable pressure relief valve
Special Features:
- Two Speed pump design is faster and requires less handle strokes reducing operator fatigue.
- Works with a wide variety of rams including short, push, spreader and snap-set types.
- Extremely portable, great for on site use.
- Chrome-plated piston rods for long pump life.
- Polyurethane seals allow greater cycle counts reducing service requirements.
- Easy to mount design.
- Works with "quick-connect" couplers for fast set up.
- Heavy duty return springs provide consistent performance.
Country of Origin: Taiwan
| Speed | 2 |
|---|---|
| Port Size (NPT) | 3/8" |
| Usable Oil Capacity (in³) | 42 |
| Pressure Rating - 1st Stage (psi) | 200 |
| Pressure Rating - 2nd Stage (psi) | 10,000 |
| Oil Displacement Per Stroke - 1st Stage (in³) | 0.79 |
| Oil Displacement Per Stroke - 2nd Stage (in³) | 0.17 |
| Max Handle Effort (lbs) | 87 |
| Piston Stroke (in) | 1.10 |
| Weight (lbs) | 21.000000 |
