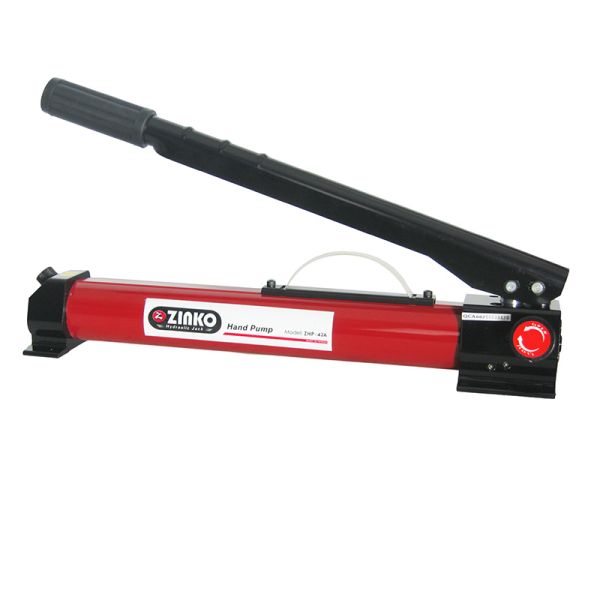

ZHP-42A, 42 in³ Two Speed Aluminum Hand Pump
$496.80
In stock
SKU
23-42A
Overview
The Zinko ZHP-42A is a lightweight, 10,000 PSI two-speed manual aluminum hand pump engineered for highly portable field service. Featuring an expanded 42 cubic inch usable aluminum fluid reservoir, its heat-treated alloy construction offers complete fracture resistance in demanding conditions. The integrated two-speed bypass mechanism delivers high-displacement initial cylinder engagement before shifting under load, and the unit comes equipped with a standard 3/8" NPT fluid port and an internal safety relief valve.
Special Features:
- The strongest aluminum alloys are used and heat-treated to provide the maximum combination of strength to resist fractures.
- Lightweight aluminum reservoir for portability.
- The best choice for applications where composite reservoirs may not be suitable.
- Large oil capacity to power a wide range of cylinders.
- Two-speed pumps provide rapid cylinder’s stroke at 1st stage, minimizing effort. At the 2nd stage, the pumps automatically switch when a load is applied. This allows for faster fills and reduces cycle times for many testing operations.
Country of Origin: Taiwan
| Speed | 2 |
|---|---|
| Port Size (NPT) | 3/8" |
| Usable Oil Capacity (in³) | 42 |
| Pressure Rating - 1st Stage (psi) | 300 |
| Pressure Rating - 2nd Stage (psi) | 10,000 |
| Oil Displacement Per Stroke - 1st Stage (in³) | 0.345 |
| Oil Displacement Per Stroke - 2nd Stage (in³) | 0.086 |
| Max Handle Effort (lbs) | 71.5 |
| Piston Stroke (in) | 1.00 |
| Weight (lbs) | 13.000000 |
