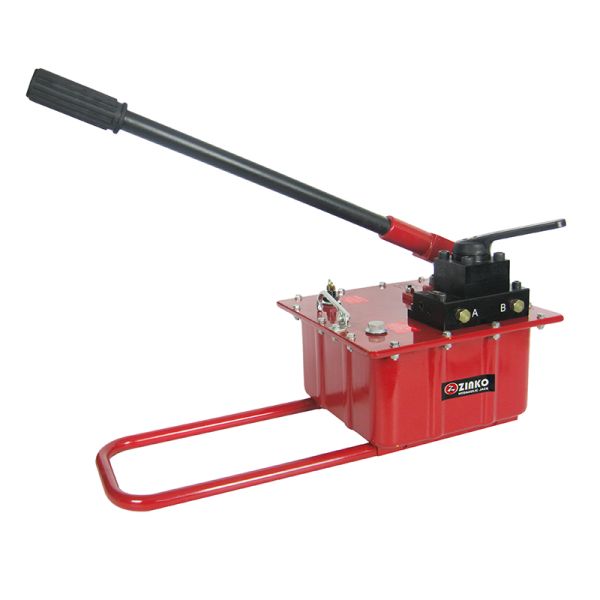

ZHP-464, 453 in³ Two Speed High Flow Hand Pump
$3,054.86
In stock
Only 1 left
SKU
23-464
Overview
The Zinko ZHP-464 is an industrial-capacity, two-speed, high-flow manual hand pump featuring an all-steel body built for structural longevity in the harshest environments. Its sealed body construction enables multi-directional use—including a vertical head-down position—and houses a 453 cubic inch steel reservoir that safely withstands slag and burn-through in intense welding and rigging jobs. Delivering a fast 7.69 cubic inch first-stage displacement for rapid cylinder fills, it integrates chrome-plated piston rods to resist wear, a 3/8" NPT oil port, and an external adjustable safety relief valve.
Special Features:
- The strongest aluminum alloys are used and heat-treated to provide the maximum combination of strength to resist fractures.
- The best choice for applications where composite reservoirs may not be suitable.
- Two-speed pumps provide rapid cylinder’s stroke at 1st stage, minimizing effort. At the 2nd stage, the pumps automatically switch when a load is applied. This allows for faster fills and reduces cycle times for many testing operations.
Country of Origin: Taiwan
| Speed | 2 |
|---|---|
| Port Size (NPT) | 3/8" |
| Usable Oil Capacity (in³) | 453 |
| Pressure Rating - 1st Stage (psi) | 200 |
| Pressure Rating - 2nd Stage (psi) | 10,000 |
| Oil Displacement Per Stroke - 1st Stage (in³) | 7.69 |
| Oil Displacement Per Stroke - 2nd Stage (in³) | 0.29 |
| Max Handle Effort (lbs) | 110 |
| Piston Stroke (in) | 1.50 |
| Weight (lbs) | 70.000000 |
