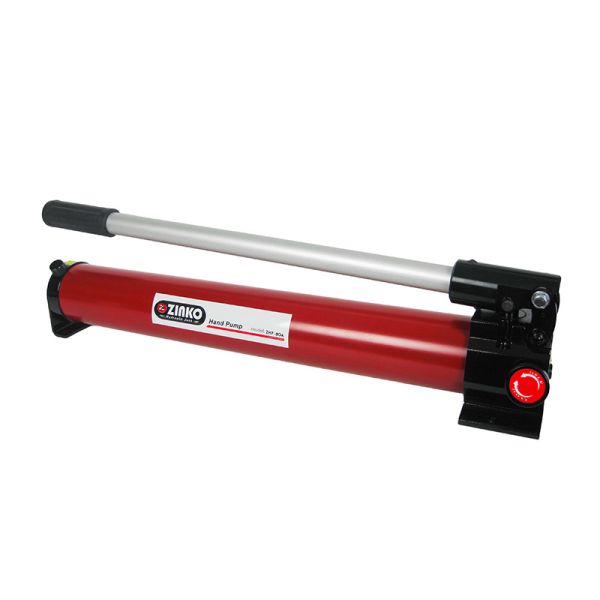

ZHP-80A, 80 in³ Two Speed Aluminum Hand Pump
$655.71
In stock
Only 1 left
SKU
23-80A
Overview
The Zinko ZHP-80A is a high-capacity, 10,000 PSI two-speed manual aluminum hand pump engineered for highly portable field service. Equipped with a large 80 cubic inch usable aluminum fluid reservoir, it provides the extended oil volume necessary to power a wide range of larger cylinders without adding heavy steel tank weight. The fracture-resistant alloy pump includes an automatic two-speed mechanism to accelerate cycle times, a standard 3/8" NPT port, and a built-in safety relief valve.
Special Features:
- The strongest aluminum alloys are used and heat-treated to provide the maximum combination of strength to resist fractures.
- Lightweight aluminum reservoir for portability.
- The best choice for applications where composite reservoirs may not be suitable.
- Large oil capacity to power a wide range of cylinders.
- Two-speed pumps provide rapid cylinder’s stroke at 1st stage, minimizing effort. At the 2nd stage, the pumps automatically switch when a load is applied. This allows for faster fills and reduces cycle times for many testing operations.
Country of Origin: Taiwan
| Speed | 2 |
|---|---|
| Port Size (NPT) | 3/8" |
| Usable Oil Capacity (in³) | 80 |
| Pressure Rating - 1st Stage (psi) | 300 |
| Pressure Rating - 2nd Stage (psi) | 10,000 |
| Oil Displacement Per Stroke - 1st Stage (in³) | 0.345 |
| Oil Displacement Per Stroke - 2nd Stage (in³) | 0.134 |
| Max Handle Effort (lbs) | 92.4 |
| Piston Stroke (in) | 1.00 |
| Weight (lbs) | 18.000000 |
