ZHP-90, 90 in³ Two Speed Hand Pump
$521.49
In stock
Only 1 left
SKU
23-090
Overview

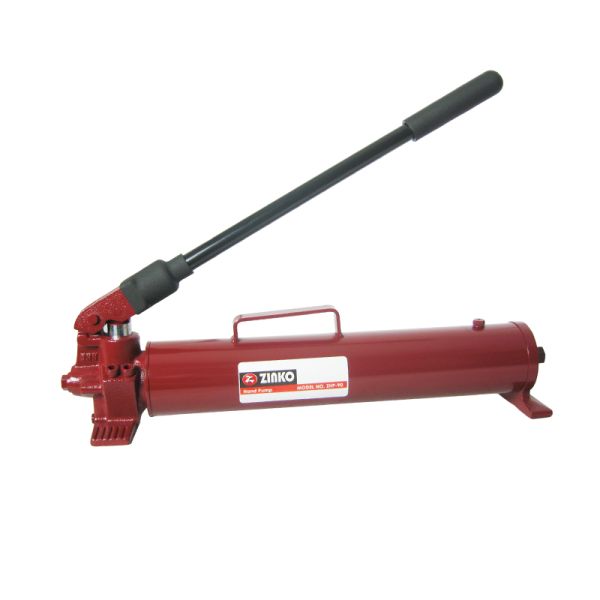

The Zinko ZHP-90 is a heavy-duty, two-speed, 10,000 PSI manual steel hand pump built for high-demand shop, construction maintenance, and agricultural service. Housing a 90 cubic inch usable steel reservoir, its automatic two-speed bypass valve delivers an optimized high-flow stage to advance cylinders rapidly before shifting under load to minimize stroke effort. Built with a sealed all-steel body that enables multi-directional use, it features premium polyurethane seals, chrome-plated piston rods, a fast-flow 3/8" NPT fluid port, and an externally adjustable safety relief valve.
Special Features:
- Two Speed pump design is faster and requires less handle strokes reducing operator fatigue.
- Works with a wide variety of rams including short, push, spreader and snap-set types.
- Extremely portable, great for on site use.
- Chrome-plated piston rods for long pump life.
- Polyurethane seals allow greater cycle counts reducing service requirements.
- Easy to mount design.
- Works with "quick-connect" couplers for fast set up.
- Heavy duty return springs provide consistent performance.
Country of Origin: Taiwan
| Speed | 2 |
|---|---|
| Port Size (NPT) | 3/8" |
| Usable Oil Capacity (in³) | 90 |
| Pressure Rating - 1st Stage (psi) | 350 |
| Pressure Rating - 2nd Stage (psi) | 10,000 |
| Oil Displacement Per Stroke - 1st Stage (in³) | 0.79 |
| Oil Displacement Per Stroke - 2nd Stage (in³) | 0.17 |
| Max Handle Effort (lbs) | 87 |
| Piston Stroke (in) | 1.10 |
| Weight (lbs) | 27.000000 |
