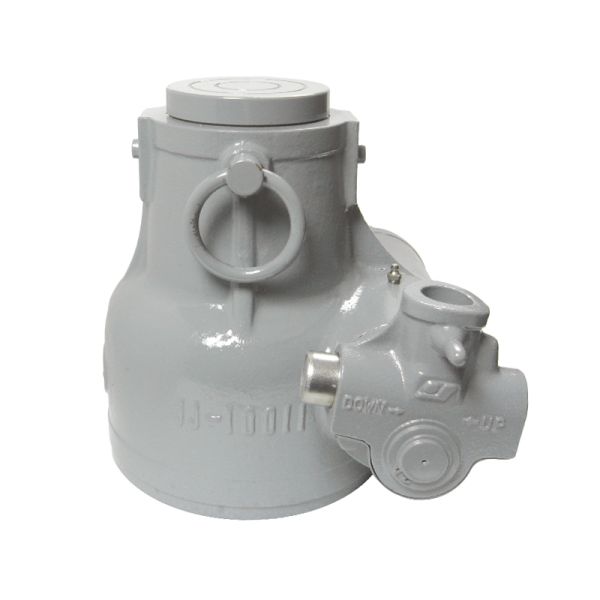

ZJJ-10011, 100 Ton 4" Stroke Journal Mechanical Jack

$9,961.88
In stock
Only 1 left
SKU
29-10011
Overview
100 Ton 4.13" Stroke Journal Mechanical Jack- Beveled gear construction combines the precision forging pinion to provide shifted tooth form, strong and excellent interlocking.

Special Features:

  • Unique construction bearing is made for longer life and smooth horizontal advance.
  • Rigidly designed screw made by chrome -molybdenum steel to withstand excessive load.
  • Beveled ring gear interlocks with the precision forged pinion to provide shifted tooth form for strong and excellent interlocking.
  • Special ratchet handle interior design with nickel-chrome wheel and plunger enables strong rotation for an easy , smooth operation.
  • Buttress threads will not creep down under load.
  • Operable vertically or laterally (lateral movement requires optional traversing bed).

    Country of Origin: Japan
More Information
Capacity (Tons) 100
Stroke (in) 4.13
Operation Force (Ft. / lb.) 740
Minimum Height (in) 12.20
Maximum Heights (in) 16.33
Saddle Diameter (in) 5.00
Base Diameter (in) 9.25
Weight (lbs) 220.000000
