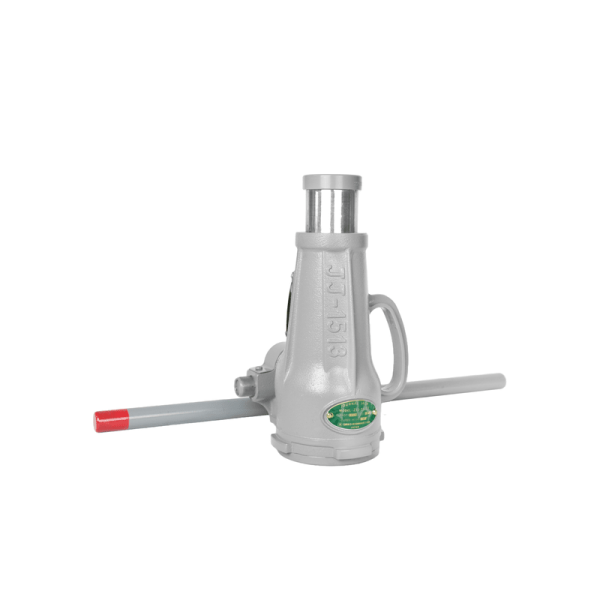

ZJJ-1513, 15 Ton 5" Stroke Journal Mechanical Jack

$1,720.26
In stock
Only 2 left
SKU
29-1513
Overview
15 Ton 4.92" Stroke Journal Mechanical Jack- Beveled gear construction combines the precision forging pinion to provide shifted tooth form, strong and excellent interlocking.

Special Features:

  • Unique construction bearing is made for longer life and smooth horizontal advance.
  • Rigidly designed screw made by chrome -molybdenum steel to withstand excessive load.
  • Beveled ring gear interlocks with the precision forged pinion to provide shifted tooth form for strong and excellent interlocking.
  • Special ratchet handle interior design with nickel-chrome wheel and plunger enables strong rotation for an easy , smooth operation.
  • Buttress threads will not creep down under load.
  • Operable vertically or laterally (lateral movement requires optional traversing bed).

    Country of Origin: Japan
More Information
Capacity (Tons) 15
Stroke (in) 4.92
Operation Force (Ft. / lb.) 310
Minimum Height (in) 10.04
Maximum Heights (in) 14.96
Saddle Diameter (in) 2.48
Base Diameter (in) 3.03
Weight (lbs) 40.000000
