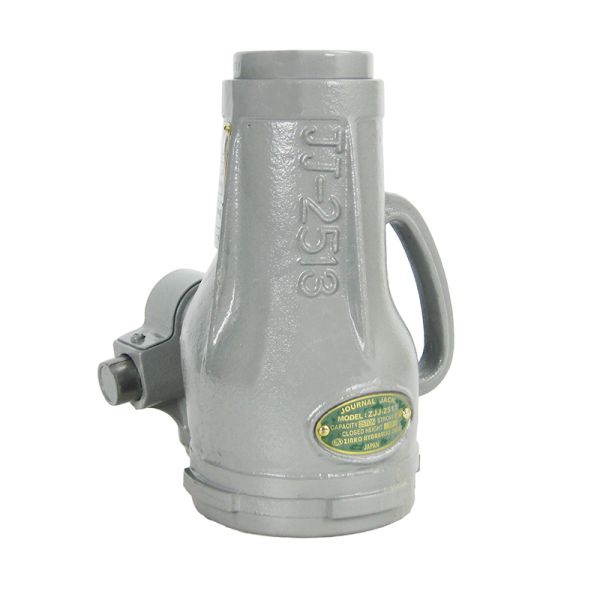

ZJJ-2513, 25 Ton 5" Stroke Journal Mechanical Jack
$1,991.59
In stock
SKU
29-2513
Overview
25 Ton 4.92" Stroke Journal Mechanical Jack- Beveled gear construction combines the precision forging pinion to provide shifted tooth form, strong and excellent interlocking.
Special Features:
- Unique construction bearing is made for longer life and smooth horizontal advance.
- Rigidly designed screw made by chrome -molybdenum steel to withstand excessive load.
- Beveled ring gear interlocks with the precision forged pinion to provide shifted tooth form for strong and excellent interlocking.
- Special ratchet handle interior design with nickel-chrome wheel and plunger enables strong rotation for an easy , smooth operation.
- Buttress threads will not creep down under load.
- Operable vertically or laterally (lateral movement requires optional traversing bed).
Country of Origin: Japan
| Capacity (Tons) | 25 |
|---|---|
| Stroke (in) | 4.92 |
| Operation Force (Ft. / lb.) | 520 |
| Minimum Height (in) | 10.04 |
| Maximum Heights (in) | 14.96 |
| Saddle Diameter (in) | 3.03 |
| Base Diameter (in) | 5.00 |
| Weight (lbs) | 50.000000 |
