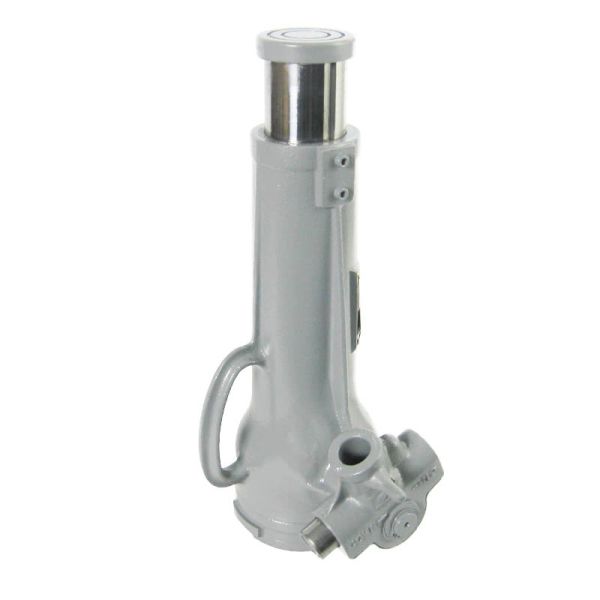

ZJJ-2525, 25 Ton 10" Stroke Journal Mechanical Jack

$2,511.03
In stock
SKU
29-2525
Overview
25 Ton 9.84" Stroke Journal Mechcanical Jack- Beveled gear construction combines the precision forging pinion to provide shifted tooth form, strong and excellent interlocking.

Special Features:

  • Unique construction bearing is made for longer life and smooth horizontal advance.
  • Rigidly designed screw made by chrome -molybdenum steel to withstand excessive load.
  • Beveled ring gear interlocks with the precision forged pinion to provide shifted tooth form for strong and excellent interlocking.
  • Special ratchet handle interior design with nickel-chrome wheel and plunger enables strong rotation for an easy , smooth operation.
  • Buttress threads will not creep down under load.
  • Operable vertically or laterally (lateral movement requires optional traversing bed).

    Country of Origin: Japan
More Information
Capacity (Tons) 25
Stroke (in) 9.84
Operation Force (Ft. / lb.) 520
Minimum Height (in) 15.55
Maximum Heights (in) 25.39
Saddle Diameter (in) 3.03
Base Diameter (in) 5.00
Weight (lbs) 60.000000
