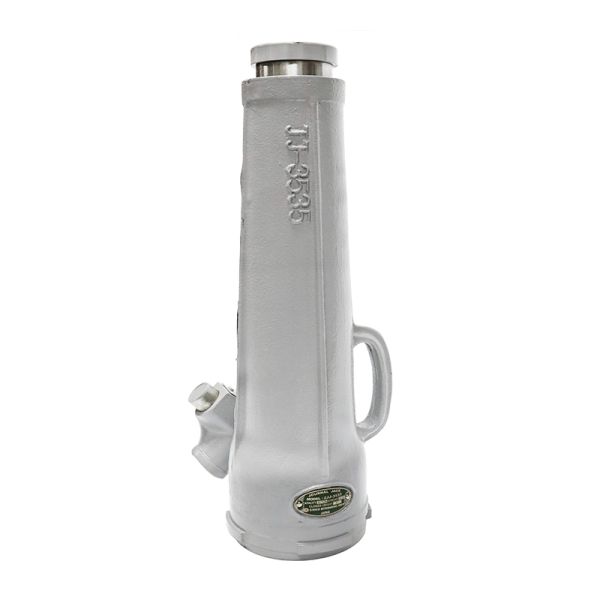

ZJJ-3535, 35 Ton 13" Stroke Journal Mechanical Jack
$4,626.29
In stock
SKU
39-3535
Overview
35 Ton 13.87" Stroke Journal Mechanical Jack- Beveled gear construction combines the precision forging pinion to provide shifted tooth form, strong and excellent interlocking.
Special Features:
- Unique construction bearing is made for longer life and smooth horizontal advance.
- Rigidly designed screw made by chrome -molybdenum steel to withstand excessive load.
- Beveled ring gear interlocks with the precision forged pinion to provide shifted tooth form for strong and excellent interlocking.
- Special ratchet handle interior design with nickel-chrome wheel and plunger enables strong rotation for an easy , smooth operation.
- Buttress threads will not creep down under load.
- Operable vertically or laterally (lateral movement requires optional traversing bed).
Country of Origin: Japan
| Capacity (Tons) | 35 |
|---|---|
| Stroke (in) | 13.87 |
| Operation Force (Ft. / lb.) | 740 |
| Minimum Height (in) | 21.06 |
| Maximum Heights (in) | 34.93 |
| Saddle Diameter (in) | 3.42 |
| Base Diameter (in) | 5.78 |
| Weight (lbs) | 100.000000 |
