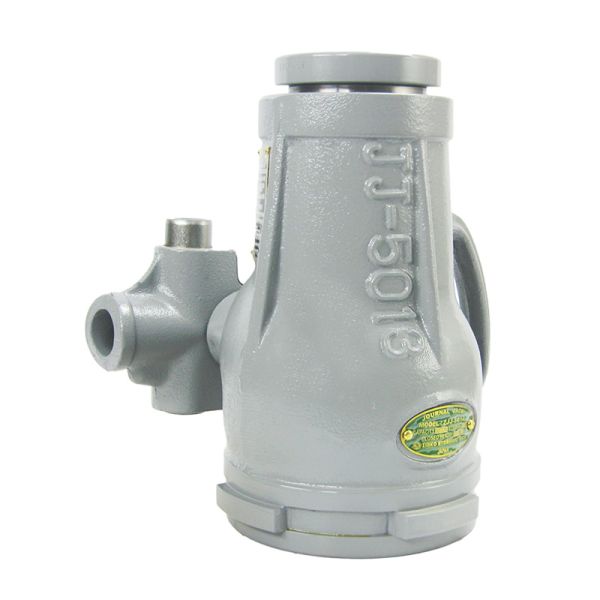

ZJJ-5013, 50 Ton 5" Stroke Journal Mechanical Jack

$3,383.09
In stock
SKU
29-5013
Overview
50 Ton 5.11" Stroke Journal Mechanical Jack- Beveled gear construction combines the precision forging pinion to provide shifted tooth form, strong and excellent interlocking.

Special Features:

  • Unique construction bearing is made for longer life and smooth horizontal advance.
  • Rigidly designed screw made by chrome -molybdenum steel to withstand excessive load.
  • Beveled ring gear interlocks with the precision forged pinion to provide shifted tooth form for strong and excellent interlocking.
  • Special ratchet handle interior design with nickel-chrome wheel and plunger enables strong rotation for an easy , smooth operation.
  • Buttress threads will not creep down under load.
  • Operable vertically or laterally (lateral movement requires optional traversing bed).

    Country of Origin: Japan
More Information
Capacity (Tons) 50
Stroke (in) 5.11
Operation Force (Ft. / lb.) 1035
Minimum Height (in) 11.42
Maximum Heights (in) 16.53
Saddle Diameter (in) 4.13
Base Diameter (in) 6.50
Weight (lbs) 90.000000
