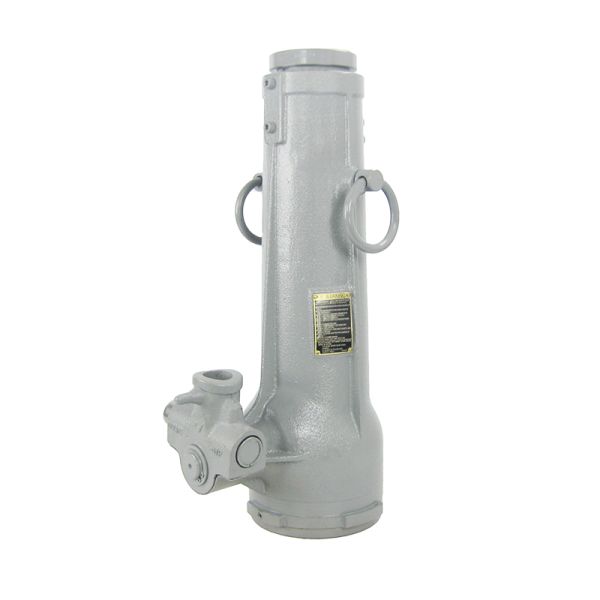

ZJJ-5035, 50 Ton 13" Stroke Journal Mechanical Jack

$4,800.68
In stock
SKU
29-5035
Overview
50 Ton 13.87" Stroke Journal Mechanical Jack- Beveled gear construction combines the precision forging pinion to provide shifted tooth form, strong and excellent interlocking.

Special Features:

  • Unique construction bearing is made for longer life and smooth horizontal advance.
  • Rigidly designed screw made by chrome -molybdenum steel to withstand excessive load.
  • Beveled ring gear interlocks with the precision forged pinion to provide shifted tooth form for strong and excellent interlocking.
  • Special ratchet handle interior design with nickel-chrome wheel and plunger enables strong rotation for an easy , smooth operation.
  • Buttress threads will not creep down under load.
  • Operable vertically or laterally (lateral movement requires optional traversing bed).

    Country of Origin: Japan
More Information
Capacity (Tons) 50
Stroke (in) 13.78
Operation Force (Ft. / lb.) 1035
Minimum Height (in) 21.85
Maximum Heights (in) 35.63
Saddle Diameter (in) 4.13
Base Diameter (in) 6.53
