ZN-12, 12 Ton Standard Bottle Jack
$147.71
In stock
SKU
81-12
Overview

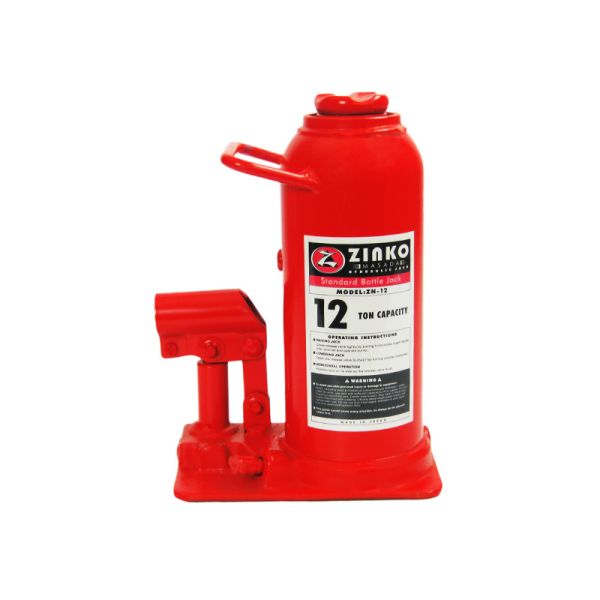

The Zinko ZN-12 is a mid-range, 12-ton hydraulic bottle jack engineered for industrial maintenance, structural alignment, and heavy-equipment lifting. Built to stringent ANSI/JIS requirements, this 19 lb unit operates from a 9.44" minimum profile up to an 18.50" maximum extended height. It features a 5.90" vertical ram lift, a 3.15" heat-treated top extension screw, and a precision-tolerance needle release valve to provide steady, stutter-free load lowering under full capacity.
Special Features:
- Welded steel construction throughout reduces metal fatigue allowing for a longer life
- Unique base forging method increases resistance to high pressure and gives a degree of durability and performance not found in any other comparable product
- ZN models are usable in multiple positions: upright, angled, or horizontal
- Special grade steel results in high durability and helps to prevent rust
- Casting, cylinder, and base are jointed by an electric welding method for high strength and to prevent leaking
- Needle valve allows you to control the lowering of the ram
- Heat-treated extension screws provide a low pickup height adjustment and maximum lift height
Country of Origin: Japan
| Capacity (Tons) | 12 |
|---|---|
| Minimum Height (in) | 9.44 |
| Maximum Heights (in) | 18.50 |
| Ram Lift (in) | 5.90 |
| Screw Extension (in) | 3.15 |
| Base Area (in) | 6.53 x 4.17 |
| Weight (lbs) | 19.000000 |
