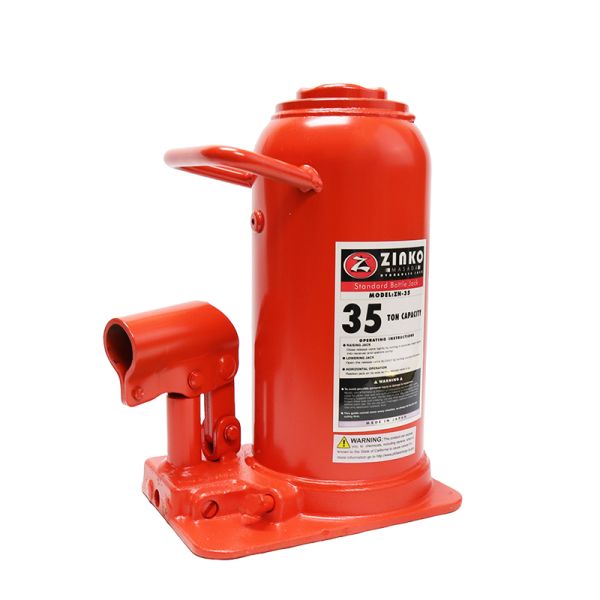

ZN-35, 35 Ton Standard Bottle Jack
$468.29
In stock
SKU
81-35
Overview
The Zinko ZN-35 is a heavy-duty, 35-ton hydraulic bottle jack engineered for massive infrastructure lifting, bridge support positioning, and heavy industrial rigging. Built in Japan using an all-welded casting-to-base method, it completely removes traditional threaded fluid leak points. Weighing 45 lbs, it delivers a steady 6.25" ram stroke within an operational height range of 11.02" to 17.32", regulated by a fine-thread needle valve for highly controlled descending placement.
Special Features:
- Welded steel construction throughout reduces metal fatigue allowing for a longer life
- Unique base forging method increases resistance to high pressure and gives a degree of durability and performance not found in any other comparable product
- ZN models are usable in multiple positions: upright, angled, or horizontal
- Special grade steel results in high durability and helps to prevent rust
- Casting, cylinder, and base are jointed by an electric welding method for high strength and to prevent leaking
- Needle valve allows you to control the lowering of the ram
- Heat-treated extension screws provide a low pickup height adjustment and maximum lift height
- Safety valve device protects the hydraulic system from overload damage
Country of Origin: Japan
| Capacity (Tons) | 35 |
|---|---|
| Minimum Height (in) | 11.02 |
| Maximum Heights (in) | 17.32 |
| Ram Lift (in) | 6.25 |
| Screw Extension (in) | --- |
| Base Area (in) | 7.56 x 5.60 |
| Weight (lbs) | 45.000000 |
