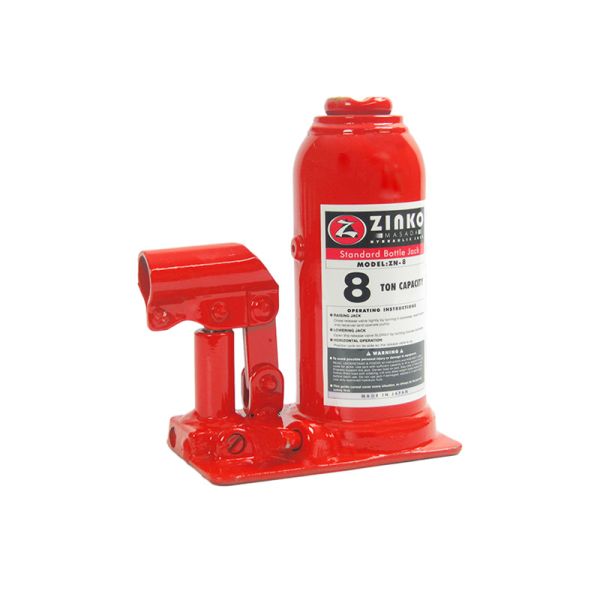

ZN-8, 8 Ton Standard Bottle Jack
$124.14
In stock
SKU
81-08
Overview
The Zinko ZN-8 is an 8-ton commercial-grade hydraulic bottle jack optimized for heavy machinery placement, commercial fleet service, and construction rigging. Featuring an electric-welded alloy steel frame and a uniquely forged base, it maximizes high-pressure resistance while offering full multi-position utility (vertical, angled, or horizontal). It delivers a 4.75" hydraulic stroke combined with a heat-treated extension screw, maintaining a compact shop footprint while enabling precise fine-tuning and needle-valve descent tracking.
Special Features:
- Welded steel construction throughout reduces metal fatigue allowing for a longer life
- Unique base forging method increases resistance to high pressure and gives a degree of durability and performance not found in any other comparable product
- ZN models are usable in multiple positions: upright, angled, or horizontal
- Special grade steel results in high durability and helps to prevent rust
- Casting, cylinder, and base are jointed by an electric welding method for high strength and to prevent leaking
- Needle valve allows you to control the lowering of the ram
- Heat-treated extension screws provide a low pickup height adjustment and maximum lift height
Country of Origin: Japan
| Capacity (Tons) | 8 |
|---|---|
| Minimum Height (in) | 7.87 |
| Maximum Heights (in) | 15.35 |
| Ram Lift (in) | 4.72 |
| Screw Extension (in) | 2.75 |
| Base Area (in) | 5.94 x 3.54 |
| Weight (lbs) | 12.000000 |
