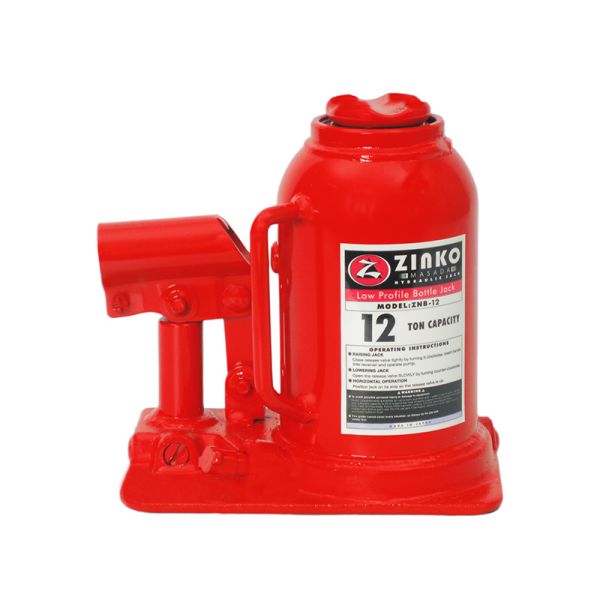

ZNB-12, 12 Ton Low Profile Bottle Jack
$147.71
In stock
SKU
82-12
Overview
(1.0) The Zinko ZNB-12 is a 12-ton low-profile hydraulic bottle jack designed for restricted-clearance lifting and pushing in machinery installation, construction rigging, and fleet maintenance. Built in Japan to ANSI and JIS standards, this 12 lb unit operates from an abbreviated 6.70" minimum starting height up to a 13.38" maximum extended height. Featuring a 3.74" hydraulic ram stroke paired with a 2.95" heat-treated top extension screw, its electric-welded housing allows multi-position operation in upright, angled, or horizontal planes.
Special Offer!
Ut enim ad minim veniam quis nostrud laboris nisi 20% off. Sed aliquip do eiusmod tempor: XYZ20
Special Features:
- Welded steel construction throughout reduces metal fatigue allowing for a longer life
- Unique base forging method increases resistance to high pressure and gives a degree of durability and performance not found in any other comparable product
- ZN models are usable in multiple positions: upright, angled, or horizontal
- Special grade steel results in high durability and helps to prevent rust
- Casting, cylinder, and base are jointed by an electric welding method for high strength and to prevent leaking
- Needle valve allows you to control the lowering of the ram
- Heat-treated extension screws provide a low pickup height adjustment and maximum lift height
Country of Origin: Japan
| Capacity (Tons) | 12 |
|---|---|
| Minimum Height (in) | 6.70 |
| Maximum Heights (in) | 13.38 |
| Ram Lift (in) | 3.74 |
| Screw Extension (in) | 2.95 |
| Base Area (in) | 6.53 x 4.17 |
| Weight (lbs) | 15.000000 |
