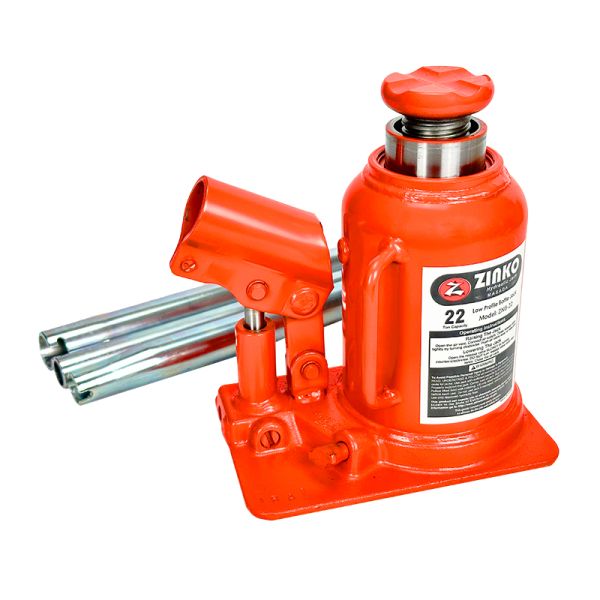

ZNB-22, 22 Ton Low Profile Bottle Jack
$227.86
In stock
SKU
82-22
Overview
(1.0) The Zinko ZNB-22 is a 22-ton low-clearance hydraulic bottle jack engineered for heavy vehicle fleet servicing, low-slung machinery placement, and tight-access industrial rigging. Featuring a 7.08" minimum height and a 12.00" maximum reach, this 24 lb jack provides a 3.34" ram stroke and a 1.57" adjustable screw extension. Its forged steel base design and electric-welded cylinder resist deformation under peak loads, allowing operators to deploy the unit vertically, horizontally, or at an angle without fluid bypass.
Special Features:
- Welded steel construction throughout reduces metal fatigue allowing for a longer life
- Unique base forging method increases resistance to high pressure and gives a degree of durability and performance not found in any other comparable product
- ZN models are usable in multiple positions: upright, angled, or horizontal
- Special grade steel results in high durability and helps to prevent rust
- Casting, cylinder, and base are jointed by an electric welding method for high strength and to prevent leaking
- Needle valve allows you to control the lowering of the ram
- Heat-treated extension screws provide a low pickup height adjustment and maximum lift height
Country of Origin: Japan
| Capacity (Tons) | 22 |
|---|---|
| Minimum Height (in) | 7.08 |
| Maximum Heights (in) | 12.00 |
| Ram Lift (in) | 3.34 |
| Screw Extension (in) | 1.57 |
| Base Area (in) | 7.16 x 5.04 |
| Weight (lbs) | 24.000000 |
