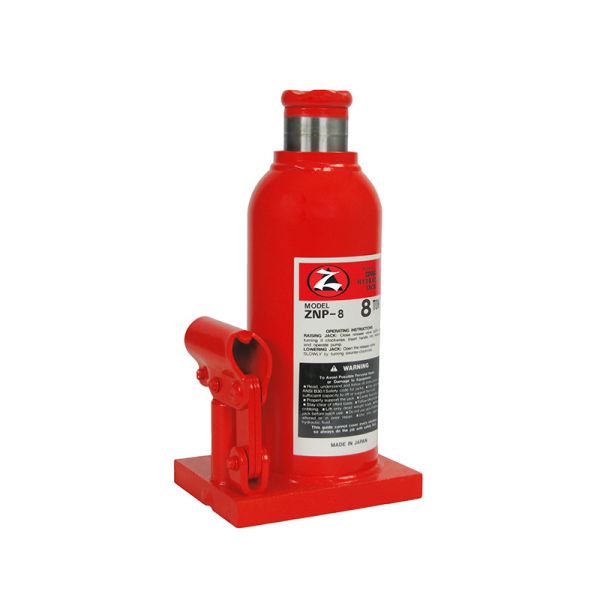

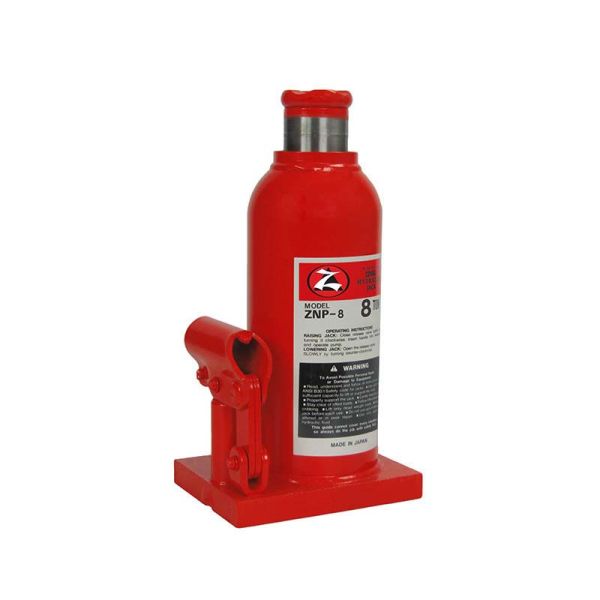

ZNP-8, 8 Ton Steel Base Bottle Jack
$105.29
In stock
SKU
83-08
Overview
(1.0) Engineered for high-frequency fleet maintenance and agricultural work, the ZNP-8 8-Ton Hydraulic Bottle Jack delivers professional-grade lifting power with a specialized, tight-clearance footprint. While matching the elite internal hydraulics and Japanese craftsmanship of the standard ZN-8, this version features a more compact 5.59" x 3.22" base designed to slide easily into narrow chassis pockets and restricted lifting tabs where wider jacks catch. To maximize strength under its full 16,000-lb capacity, the forged steel base is engineered with added thickness all around—offering exceptional tight-space utility and unyielding, multi-position reliability at an incredibly efficient value.
Special Features:
- Welded steel construction throughout reduces metal fatigue allowing for a longer life
- Unique base forging method increases resistance to high pressure and gives a degree of durability and performance not found in any other comparable product
- ZN models are usable in multiple positions: upright, angled, or horizontal
- Special grade steel results in high durability and helps to prevent rust
- Casting, cylinder, and base are jointed by an electric welding method for high strength and to prevent leaking
- Needle valve allows you to control the lowering of the ram
- Heat-treated extension screws provide a low pickup height adjustment and maximum lift height
Country of Origin: Japan
| Capacity (Tons) | 8 |
|---|---|
| Minimum Height (in) | 7.87 |
| Maximum Heights (in) | 15.35 |
| Ram Lift (in) | 4.72 |
| Screw Extension (in) | 2.75 |
| Base Area (in) | 5.59 x 3.22 |
| Weight (lbs) | 12.000000 |
