ZPE-35RH-1M-1, Electric Pump, 1/3 Hp, Electric 100V, 60 in³ Oil Tank
$2,195.29
In stock
SKU
24-35RH-1M-1
Overview

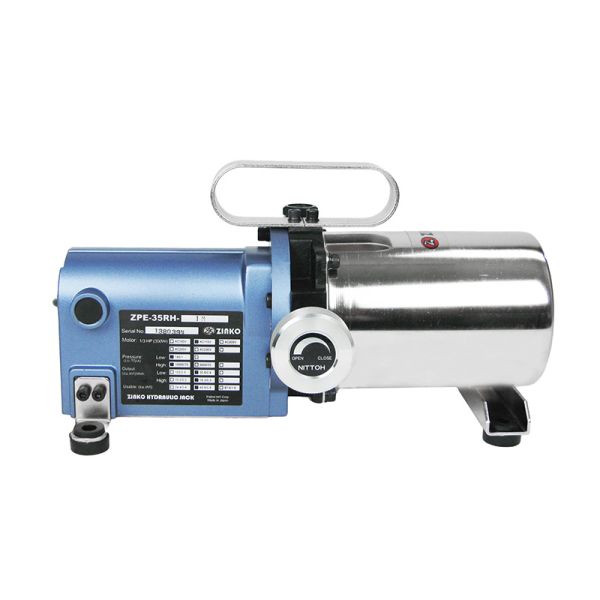

The ZPE-35-RH-1M-1 is a compact 1/3 HP electric pump built for shops and field crews that need 10,000 psi output without the bulk. At 18 lbs, a 110V, 2,000 rpm commutator motor drives a 60 in³ reservoir through a two-way manual screw valve, giving operators direct control over pressure release. Manufactured in Japan, the pump is fully sealed for outdoor use and will run in any orientation — on its side, upside down, or wherever the job puts it.
Special Features:
- All models come equipped with either a convenient carrying handle or a shoulder strap.
- All models have remote pendant switches except for models ZPE-35RH-1MB & ZPE-35RH-1MBL, which are designed with the control switch attached to the pumps.
- Super lightweight and compact for portability. Ideal for use with hydraulic pullers, pipe benders, cable tools and jacks.
- These pumps are operatable in any position and fully sealed, making them ideal for outdoor use.
- Optional battery-operated 12V & 24V DC models are available upon request.
- Optional solenoid and 4-way manual control valves are also available upon request.
Country of Origin: Japan
| Oil Capacity (in³) | 61 |
|---|---|
| Usable Oil Capacity (in³) | 49 |
| AC (v) | 110 |
| Output (HP) | 1/3 |
| Revolution (rpm) | 2,000 |
| Max Press 1st Stage - Low (psi) | 145 |
| Max Press 2nd Stage - High (psi) | 10,000 |
| Output 1st Stage - Low (in³/min) | 37 |
| Output 2nd Stage - High (in³/min) | 18 |
| Weight (lbs) | 18.000000 |
