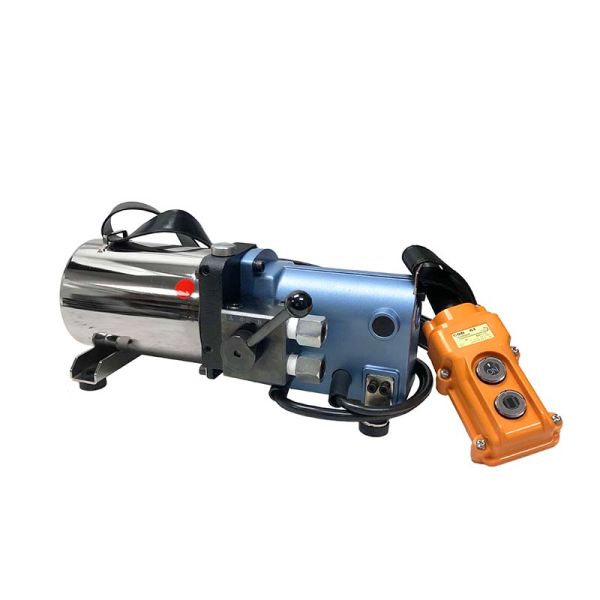

ZPE-35RH-4M, Electric Pump, 1/3 Hp, Electric 100V, 60 in³ Oil Tank With 4 Way 3 Position Manual Solenoid Valve (Double Acting)
$4,541.43
In stock
Only 1 left
SKU
24-35RH-4M
Overview
The ZPE-35RH-4M is built for double-acting cylinder applications, adding a 4-way, 3-position valve to the ZPE-35RH platform. At 17 lbs, its 110V, 1/3 HP motor drives a 60 in³ reservoir to 10,000 psi, while the valve offers advance, hold, and return positions — in hold, cylinder ports lock in place and pump flow redirects back to the reservoir. Manufactured in Japan, the pump is fully sealed and can be operated in any orientation.
Special Features:
- All models come equipped with either a convenient carrying handle or a shoulder strap.
- The 4M & 4ML models are specially designed to work with double acting cylinders.
- Super lightweight and compact for portability. Ideal for use with hydraulic pullers, pipe benders, cable tools and jacks.
- These pumps are operatable in any position and fully sealed, making them ideal for outdoor use.
- The 4 way 3 position valve has "advance, "hold" and "return" positions.
- Cylinder ports are locked in "hold" position, and pump flow is directed back to the reservoir.
Country of Origin: Japan
| Oil Capacity (in³) | 61 |
|---|---|
| Usable Oil Capacity (in³) | 49 |
| AC (v) | 110 |
| Output (HP) | 1/3 |
| Revolution (rpm) | 2000 |
| Max Press 1st Stage - Low (psi) | 145 |
| Max Press 2nd Stage - High (psi) | 10000 |
| Output 1st Stage - Low (in³/min) | 37 |
| Output 2nd Stage - High (in³/min) | 18 |
| Weight (lbs) | 20.000000 |
