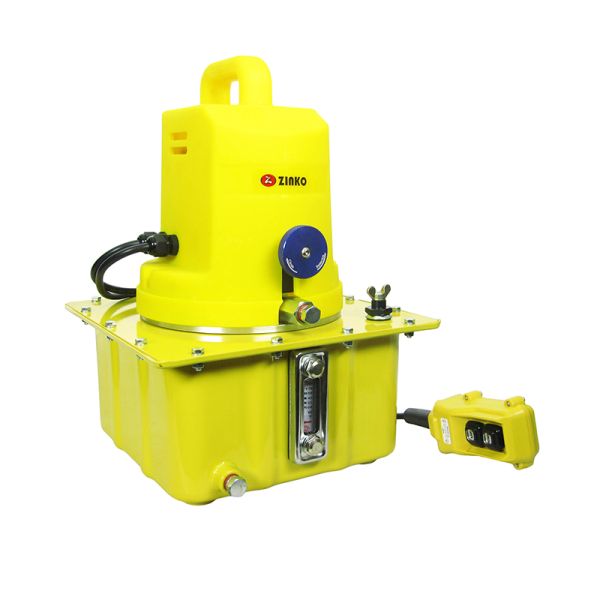

ZPE-37SR-1L, Electric Pump, 1/2 Hp, Electric 100V, 1.6 Gal. Oil Tank
$3,479.14
In stock
Only 1 left
SKU
24-36SR-1L
Overview
The ZPE-37SR-1L is a two-stage electric pump built for applications that call for a larger reservoir than the ZPE-35 line offers. A 0.5 HP, 110V brushless motor drives a 2.11-gallon (1.85-gallon usable) steel reservoir to 10,000 psi, running 244 in³/min at low pressure and 24 in³/min at high pressure. At 40 lbs, it's controlled through a simple manual valve and a 10 ft remote pendant, and can start and stop reliably across extended duty cycles thanks to the brushless motor. The pump's steel reservoir and molded motor housing are built for shop and jobsite durability.
Special Features:
- Economical 10,000 psi electric powered hydraulic pump.
- Large capacity 1.6 gallon oil reservoir allows pump to power many different sized cylinders.
- Simple manual valve allows a controlled solution when releasing pressure.
- 0.5 hp 115V electric motor provides quick lifting and simple connection to standard power outlets.
- Die mold plastic motor case provides simple carrying handle and protection for the electric motor inside.
- Steel oil reservoir provides durability for the unit.
- Hand control pendant with a 10 ft. cord allows operator to start pump from many different safe positions.
- Utilizes a brushless electric motor for high duty cycle and limited maintenance.
Country of Origin: Taiwan
| Oil Capacity (in³) | 370 |
|---|---|
| Usable Oil Capacity (in³) | 187 |
| AC (v) | 115 |
| Output (HP) | 0.5 |
| Revolution (rpm) | 2000 |
| Max Press 1st Stage - Low (psi) | 200 |
| Max Press 2nd Stage - High (psi) | 10000 |
| Output 1st Stage - Low (in³/min) | 244 |
| Output 2nd Stage - High (in³/min) | 24.4 |
| Weight (lbs) | 55.000000 |
