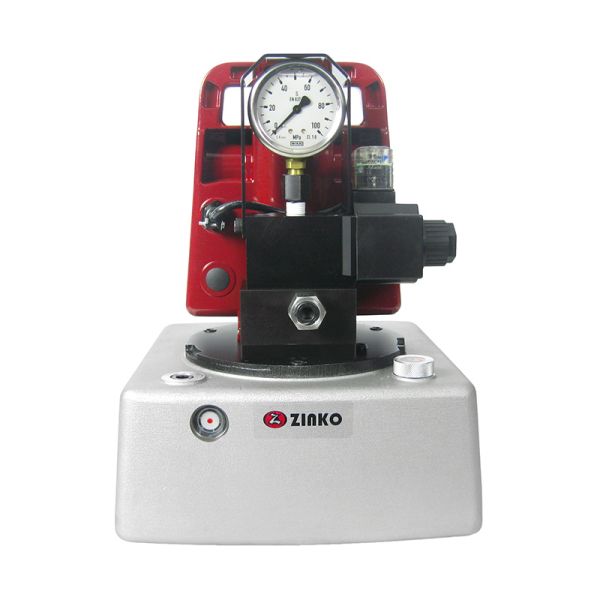

ZPE-65SVG-4L, Electric Pump, 0.87 Hp, 2 Way Solenoid Valve Normally Closed
$7,362.14
In stock
Only 1 left
SKU
24-65SVG-4L
Overview
The ZPE-65SVG-4L is a two-stage electric pump built for single-acting cylinder applications requiring push-button control. A 0.87 HP, 110/220V motor drives output up to 10,000 psi. This model uses the line's larger 1.3-gallon reservoir (1.05 gallons usable) — versus the standard 0.8-gallon (0.53 gal usable) tank — for extended run time. A 2-way, normally-closed solenoid valve governs operation through a two-button remote pendant: pressing the top button advances the cylinder, releasing both buttons holds position, and pressing the bottom button retracts it.
Special Features:
- These lightweight and portable pumps feature a 2-stage operation and high performance electric motor combined to provide excellent flow rates.
- Manufactured for maximum durability pump utilizes a lightweight aluminum alloy for the case.
- All units are equipped with and ergonomic carry handle and two button remote pendant switch.
- Standard size reservoir holds 0.8 gallons of oil with 0.53 gallons of usable oil. Larger size reservoir available on all models that holds 1.3 gallons of oil with 1.05 gallons of usable oil.
- Many options can configure unit to any application includes adjustable pressure regulator, pressure switch, various manual and solenoid valves.
- Country of Origin: Japan
| Oil Capacity (in³) | 244 |
|---|---|
| Usable Oil Capacity (in³) | 122 |
| AC (v) | 110 / 220 |
| Output (HP) | 0.87 |
| Revolution (rpm) | 2000 |
| Max Press 1st Stage - Low (psi) | 1015 |
| Max Press 2nd Stage - High (psi) | 10000 |
| Output 1st Stage - Low (in³/min) | 244 |
| Output 2nd Stage - High (in³/min) | 26 |
| Weight (lbs) | 51.000000 |
