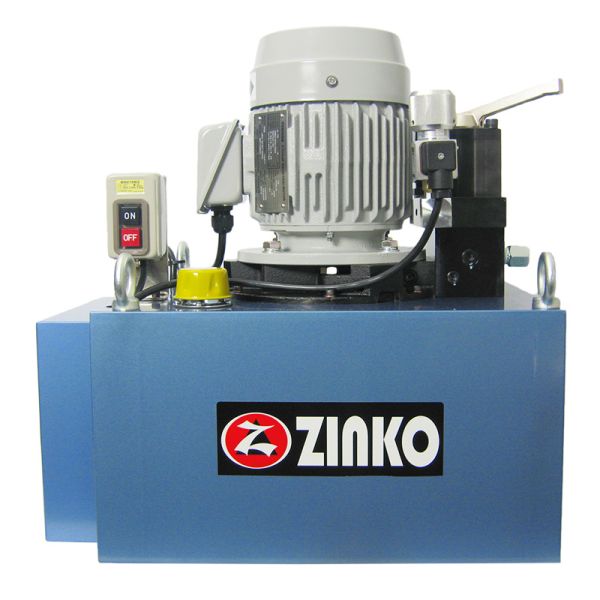

ZPE-73HS-7, Electric Pump, 1 HP, 4 Way 3 Position Manual Valve, Open Center Type (Double Acting)
The ZPE-73HS-7 is a stationary electric pump built for heavy-duty operation with double-acting cylinders. A 220V, 1 HP motor drives output up to 10,000 psi at the second stage and 1,015 psi at the first, with a standard 3.17-gallon reservoir (1.6 gallons usable) sized for mid-range cylinders and tools; a larger 6.34-gallon reservoir (4.49 gallons usable) is available for jobs running multiple cylinders at once. The pump is operated through a 4-way, 3-position manual valve offering single-button advance, hold, and retract, and comes standard with a mounted on/off electrical box rather than a remote pendant, though a remote pendant switch is available on request. An enclosed cooling fan supports extended heavy-duty use without overheating, and an adjustable pressure regulator and oil level indicator simplify setup and monitoring.
Special Features:
- The ZPE-73HS Series come equipped with a pressure gauge and are enclosed with a cooling fan for heavy-duty operation without overheating.
- Adjustable pressure regulator allows for easy pressure adjustment.
- Oil level indicator provides easy monitoring of oil level.
- Eyelet holes for convenient mounting on to fixture.
- Standard size comes with a 3-way manual valve to use with the single-acting cylinders.
- 4 ways/3 position valve to use with the double-acting cylinders.
- Designed to easily accept various kinds of stacking valves such as solenoid valves, relief valves, and check valves.
- Easy to operate mounted electrical box for on/off operation, remote pendant switches also available upon request.
Country of Origin: Japan
| Oil Capacity (in³) | 733 |
|---|---|
| Usable Oil Capacity (in³) | 370 |
| AC (v) | 220 |
| Output (HP) | 1 |
| Revolution (rpm) | 2000 |
| Max Press 1st Stage - Low (psi) | 1015 |
| Max Press 2nd Stage - High (psi) | 10000 |
| Output 1st Stage - Low (in³/min) | 244 |
| Output 2nd Stage - High (in³/min) | 27.5 |
| Weight (lbs) | 190.000000 |
