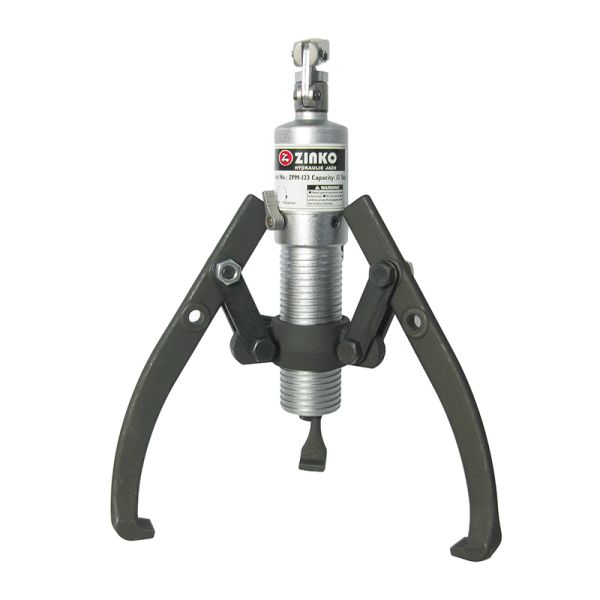

ZPM-12, 12 Ton Jaw Type Puller Set
The Zinko ZPM-12 hydraulic jaw puller delivers 12 tons of self-contained mechanical force to safely extract gears, bearings, and pulleys without the need for separate hoses or external pumps. Operating over a 3.35" stroke, this unified tool features a highly adaptable 2/3-way combination head that easily configures into a standard 3-jaw setup or a tight-clearance 2-jaw layout. It provides a versatile 10.60" maximum reach and 14.76" maximum spread, supported by a spring-loaded centering cone for precise alignment and robust manganous-phosphate plated jaws to resist on-the-job corrosion.
Reach (A): 10.60"
Reach (B): 4.06"
Spread (C): 4.72"
Spread (D): 14.76"
Pump Tip (E): 2.36"
Pump Tip (F): 1.10"
Pump Tip (G): 4.65"
Special Features:
Jaw Type Series
1. Spring loaded centering cone.
2. Jaws are plated with maganous-phosphate to prevent rust and corrosion.
3. 2/3-way combination puller head for 3-jaw puller, plus the 2-jaw option when
space is limited.
4. Multiple cross bolt mountings for additional set up versatility.
Country of Origin: Taiwan
| Capacity (Tons) | 12 |
|---|---|
| Stroke (in) | 3.35 |
| Push Force (ton) | -- |
| Pulling Force (Tons) | -- |
| Pressure Rating (psi) | -- |
| Usable Oil Capacity (in³) | -- |
| Weight (lbs) | 38.000000 |
